Removing Rear Power Windows

  1. Disconnect rear power windows mechanism.
    1. 1.1  Loosen nut -1-  at the top.
    2. 1.2  Unscrew nut -1-  at the bottom.

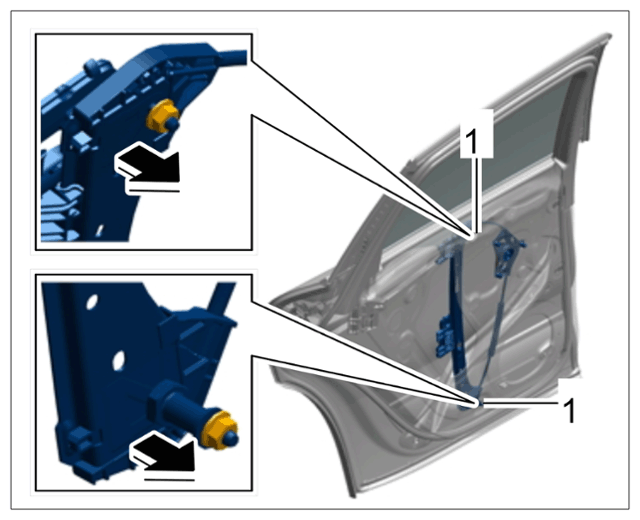

      G15160286Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Rear power windows mechanism

  2. Remove stoppers at the top of the door shell.
  3. Press the locking lugs -1-  of power window drive together and -2-  release them.

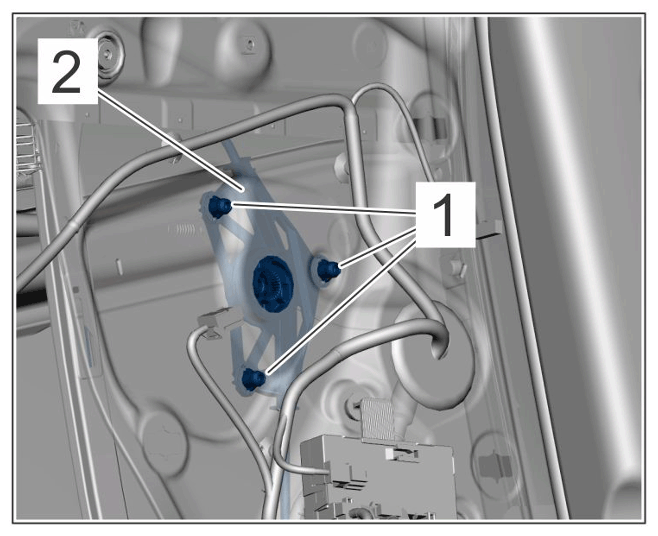

    G15160287Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Power windows drive unit

  4. Guide out rear power windows mechanism at the top and remove it through the opening in the door shell.
