Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screws securing armrest to door panel Item 4 Tightening torque 2.3 Nm (1.7 ftlb.)

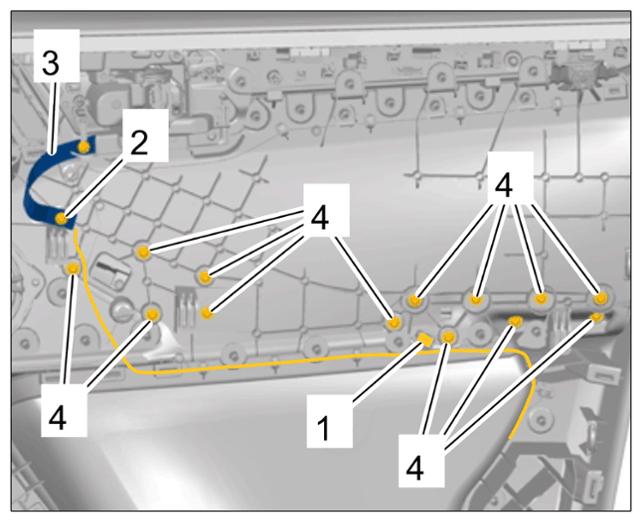

G15160262Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Armrest
