Removing Front Window Guide

  1. Loosen rubber lip -1-  in area -arrows A-  .
    G15160234Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front window guide

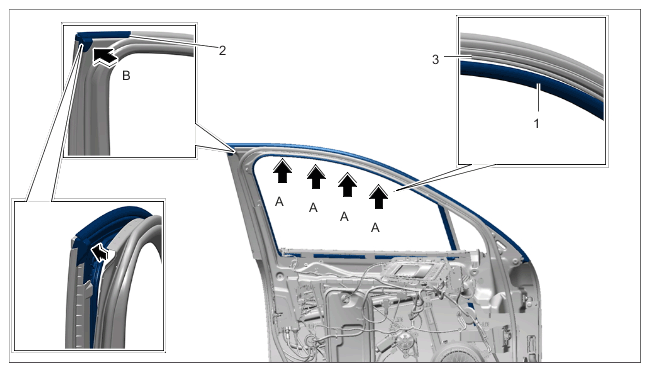

  2. Fold over front window guide -2-  in area -arrow B-  and pull off front window guide -2-  .
    G15160235Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front window guide

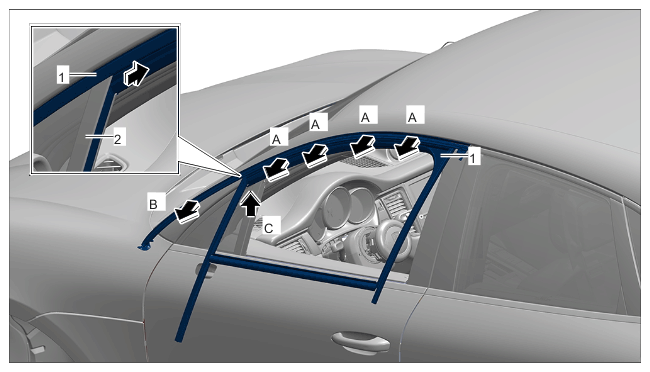

  3. Remove front window guide -1-  .
    1. 3.1  Loosen front window guide -1-  in the upper area -arrows A-  .
    2. 3.2  Pull front window guide -1-  to the rear -arrow-  and out of the guide -2-  .
    3. 3.3  Loosen front window guide -1-  in the front area -arrow B-  .
    4. 3.4  Pull front window guide -1-  up completely -arrow C-  and remove it from the guide -2-  .
      G15160236Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Front window guide
