Securing Padding For Rear Backrest

Information

• Always replace metal cushion clips.
• Reuse plastic cushion clips. Replace defective cushion clips.

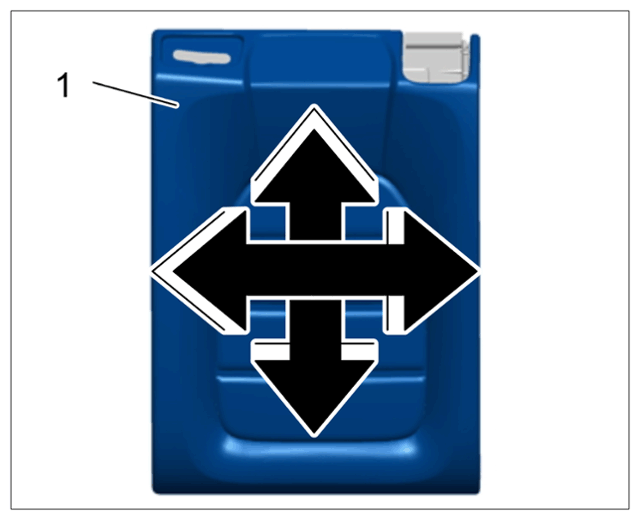

1. Align cover for rear backrest -1-  over padding for rear backrest -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover

2. Only for vehicles with heated seats:

   Connect electric plug connection for seat heating.

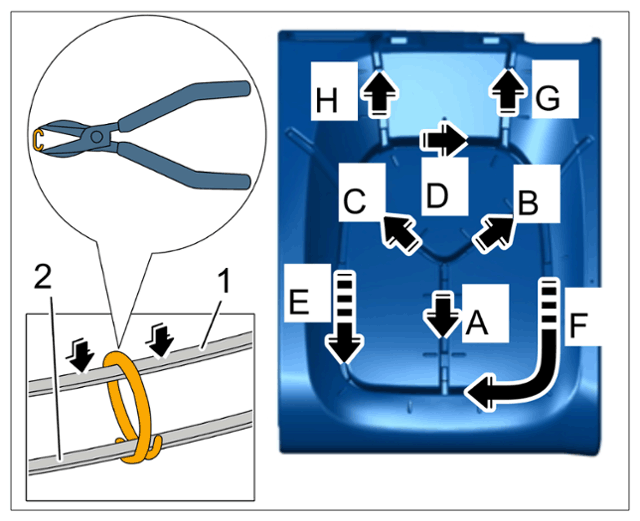

3. Secure the metal struts in the cover -1-  using > Nr.130 - cushion clip pliers  in the sequence shown (-arrows A- H-  ) to the metal struts of the padding for rear backrest -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cushion clips
