Removing Padding For Rear Backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

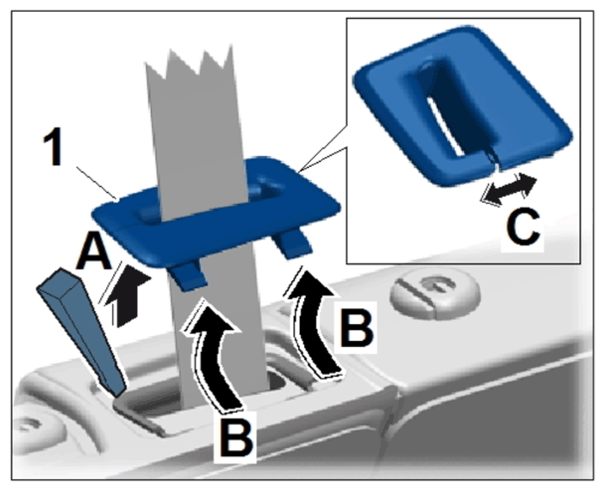

Cover for seat belt

1. 1.1 Unclip cover on seat belt -1-  using a plastic wedge at the rear -arrow A-  and pull it up and off -arrows B-  .
2. 1.2 Carefully pull cover for seat belt -1-  apart at the connection point -arrow C-  and guide out the seat belt.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

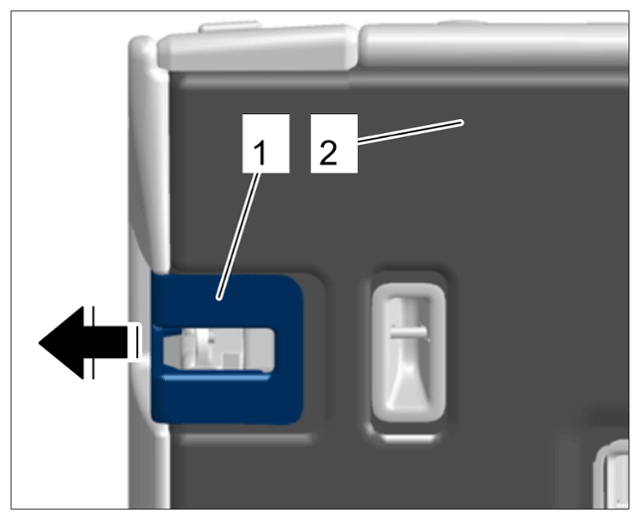

Cover for backrest lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

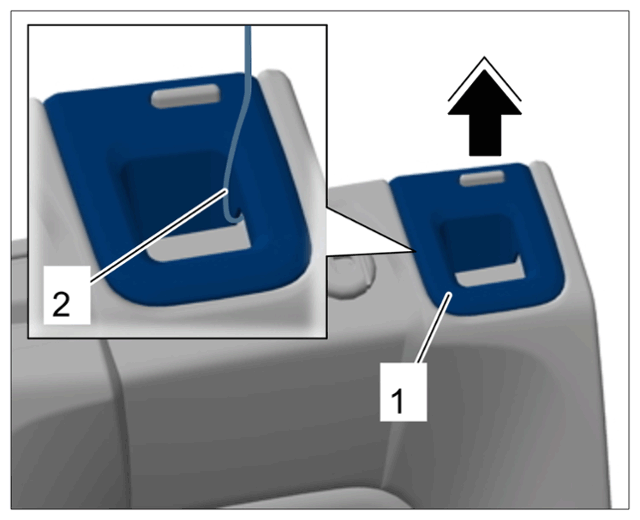

Cover on rear backrest locking mechanism

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

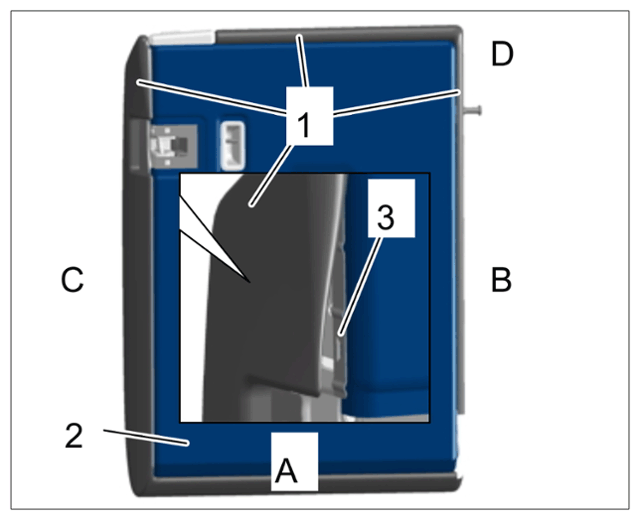

Cover piping

1. 4.1 Carefully open retaining strips using a plastic wedge and pull out cover piping -1-  .
2. 4.2 Loosen cover piping -1-  all the way around (-A- D-  ) and remove it from the rear backrest -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

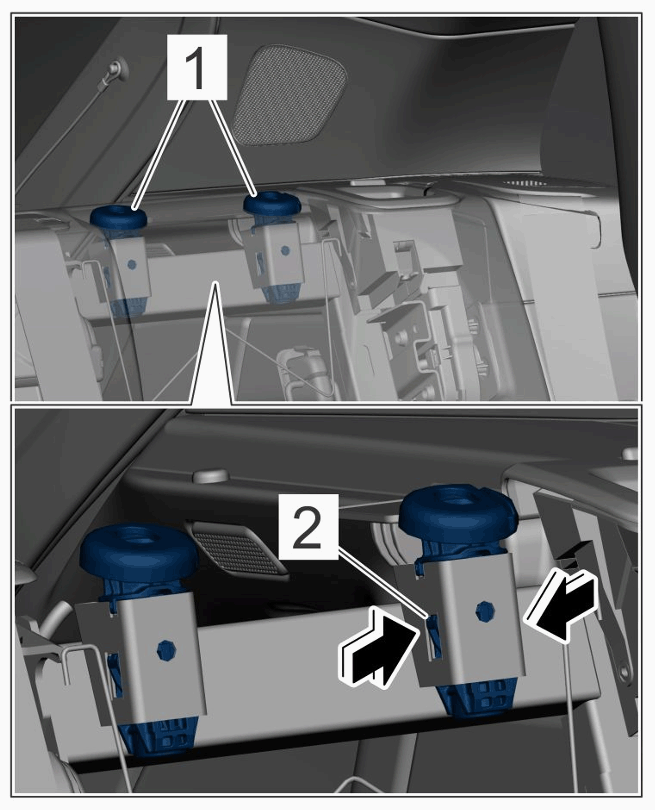

Guide bushes

Lift cover with padding at bottom from the backrest.

Press locking lugs -2-  inwards -Arrow-  .

Pull guide bush -1-  up and out.
