Securing Padding For Front Seat

Information

The mat for the occupant classification system must not be damaged or detached from the front seat padding.

1. Place cover on the padding for the front seat and align contour with the padding.
2. Use > Nr.130 - cushion clip pliers  and new cushion clips to secure the cover on the padding for the front seat in the specified sequence.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

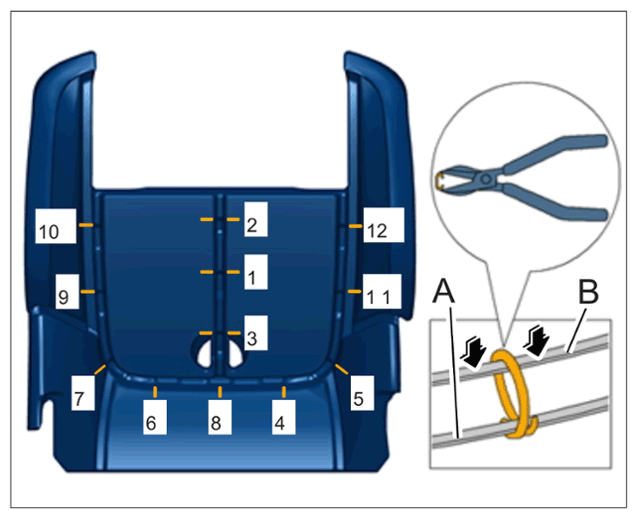

   Front seat cover (basic/Comfort)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

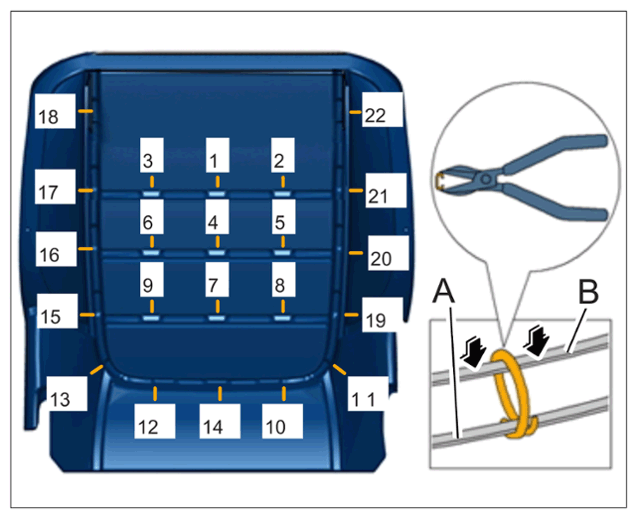

   Front seat cover (Sport)

3. Remove remaining pieces of cushion clips and separate padding for front seat from the cover.
