Removing Padding For Front Seat

Information

The mat for the occupant classification system must not be damaged or detached from the front seat padding.

1. Only for vehicles with heated seats:

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

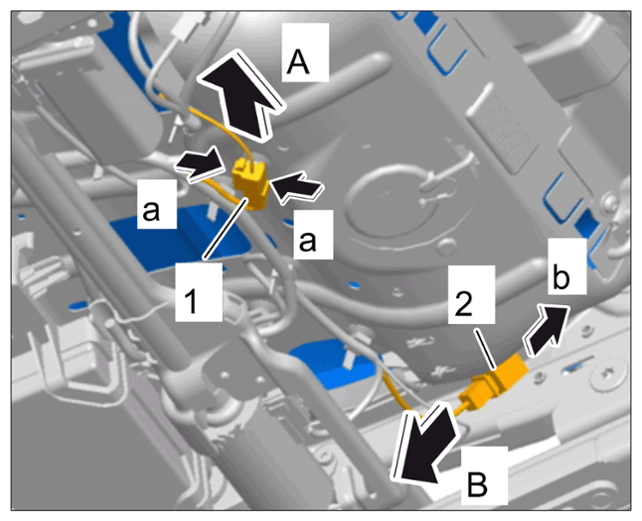

   Electric plug connection for heated seats

   1. 1.1 Release electric plug connection for seat heating -1-  (-arrows a-  ) and disconnect it -arrow A-  .
   2. 1.2 Release electric plug connection for seat-surface extension -2-  (-arrow b-  ) and disconnect it -arrow B-  .
2. Release and disconnect electric plug connection for occupant detection (Bodysense).
3. Detach front seat cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

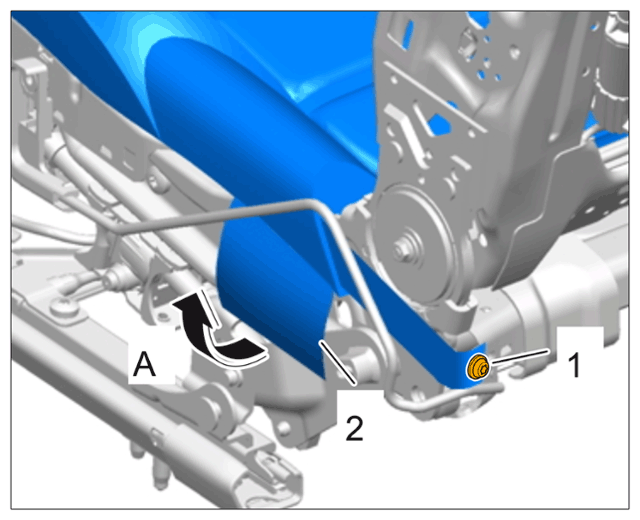

   Cover for front seat

   1. 3.1 Remove clip -1-  .
   2. 3.2 Detach front seat cover -2-  at the sides -arrow A-  .

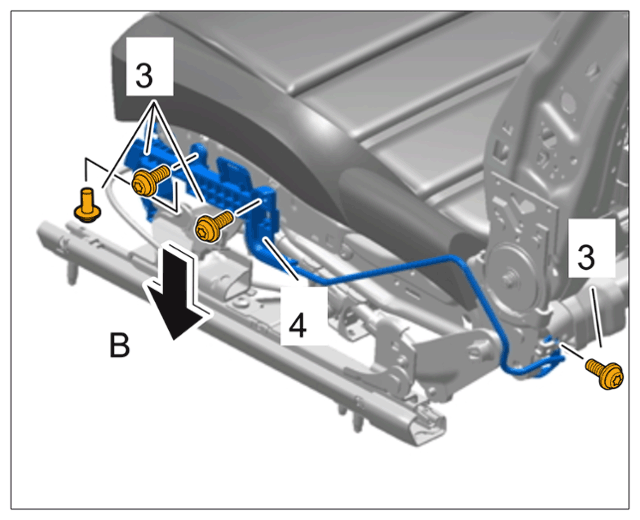

4. Unscrew screws -3-  and pull the bracket -4-  down out of the catches -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bracket

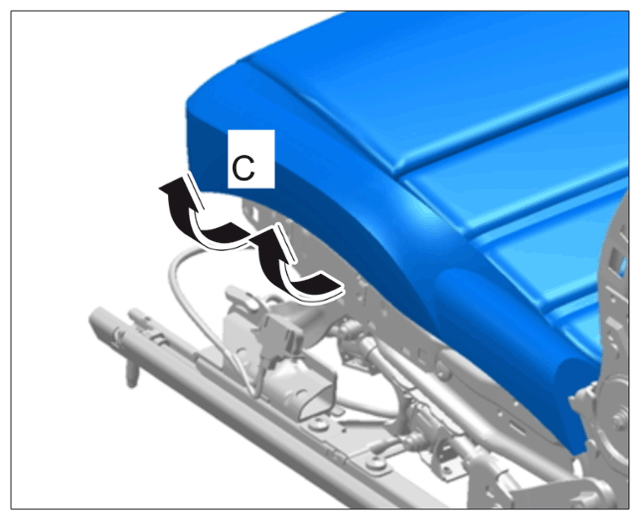

5. Detach front seat cover at the sides -arrows C-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover for front seat

6. Detaching front seat cover at the front

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

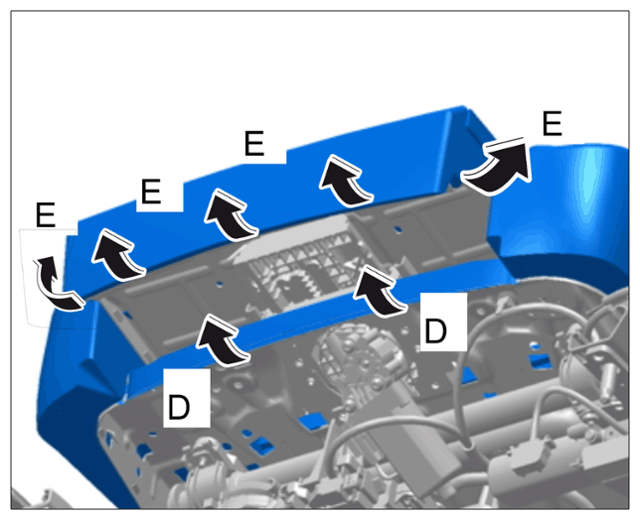

   Seat surface extension

   1. 6.1 Detach front seat cover -arrows D-  .
   2. 6.2 Only for vehicles with seat-surface extension:

   Detach cover on seat-surface extension -arrows E-  .

7. Detach front seat cover at the sides.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

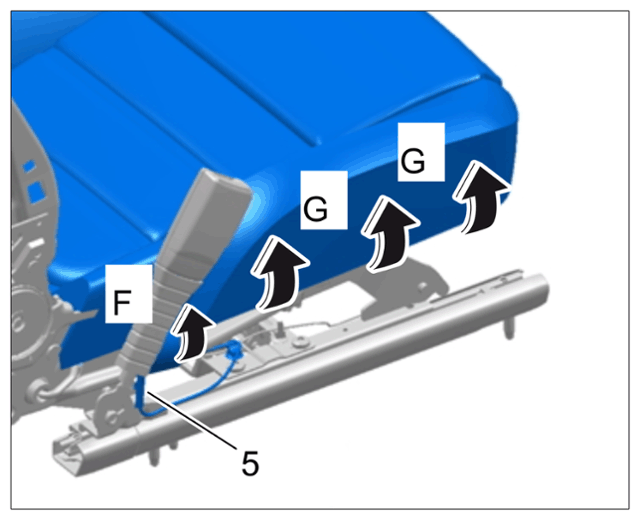

   Cover for front seat

   1. 7.1 Press in expansion rivet pin -5-  and pull out expansion rivet -5-  .
   2. 7.2 Detach front seat cover at the rear -arrow F-  .
   3. 7.3 Detach front seat cover at the sides -arrows G-  .

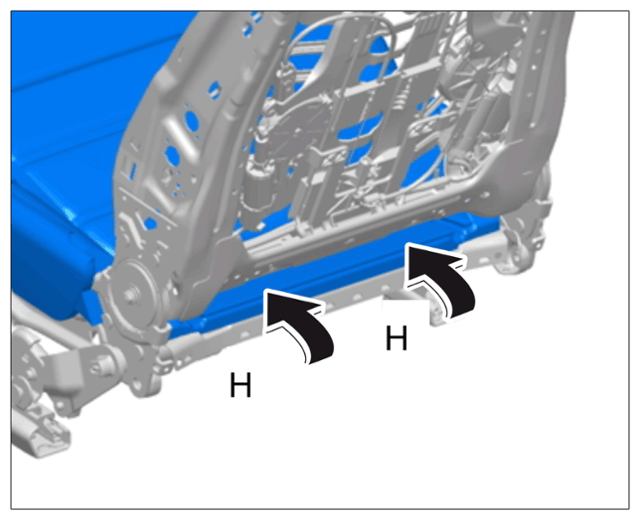

8. Detach front seat cover at the rear -arrows H-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover for front seat

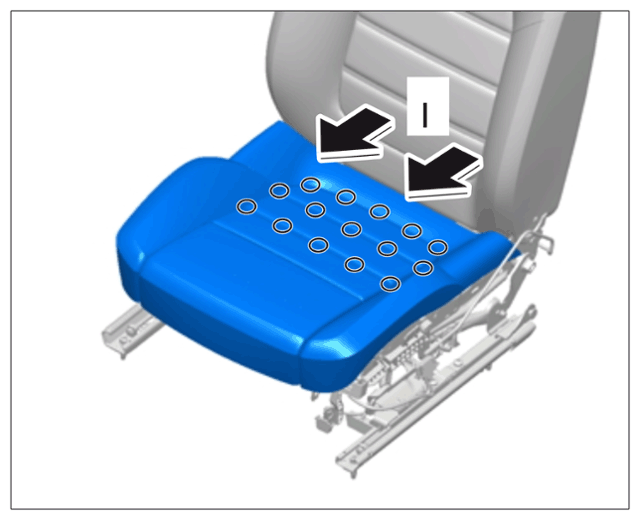

9. Guide front seat cover forward and remove it -arrows I-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover for front seat

10. Only for vehicles with seat-surface extension:

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

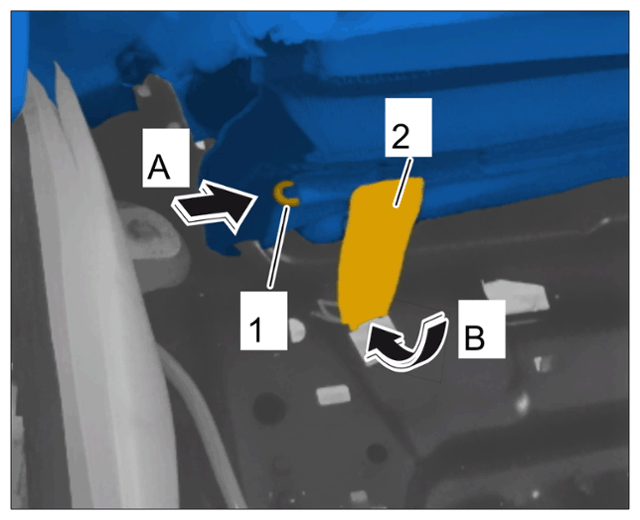

    Straps for seat-surface extension

    1. 10.1 Lift up padding for front seat at the rear.
    2. 10.2 Slide bar -1-  on front seat cover back -arrow A-  .
    3. 10.3 Disengage strap for seat-surface extension -2-  and guide it through in a downward direction -arrow B-  .
    4. 10.4 Loosen 4 red clips in the rear area on the securing wire.
11. Remove front seat cover together with the front seat padding from the seat frame.
