Removing Plug Socket In Rear Centre Console Under Climate Control Panel

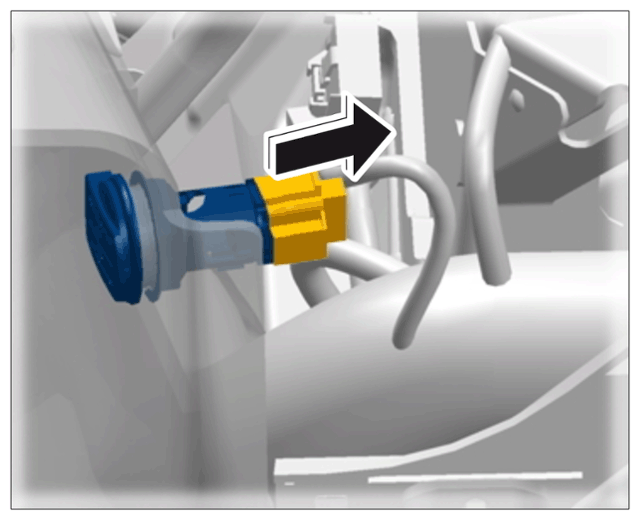

Release electric plug connection at the plug socket and disconnect it -in direction of arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for plug socket in rear centre console under climate control panel

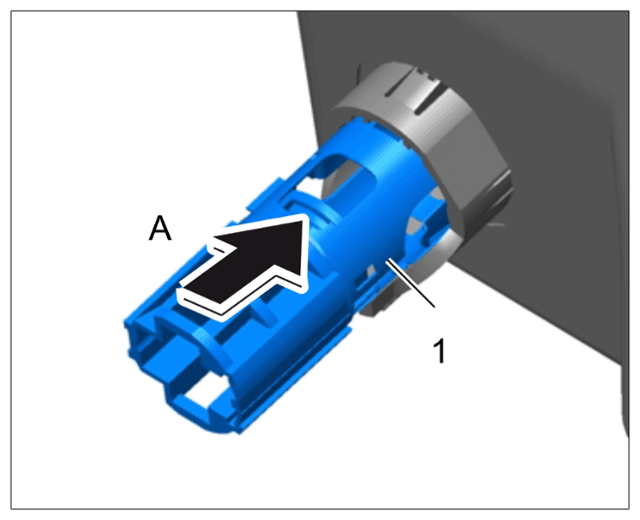

Open the cover of the plug socket and press out the plug socket -1- using a screwdriver -arrow A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing plug socket in rear centre console under climate control panel

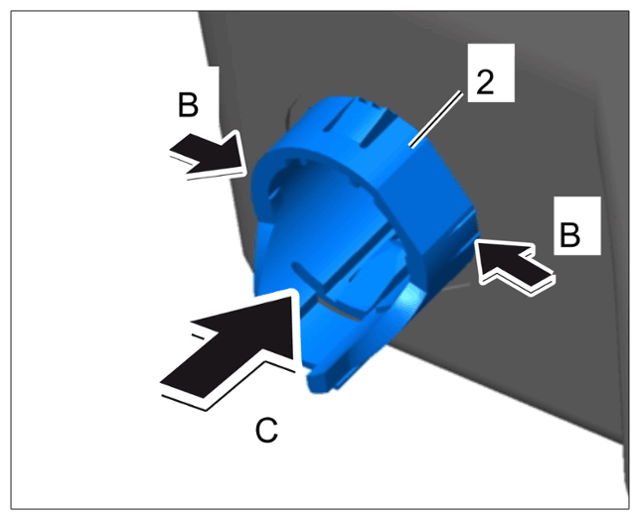

Release trim -2- (-arrow B-) and press it outwards -arrow C- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing trim around plug socket in rear centre console under climate control panel
