Removing Reversing Light

  1. Remove reversing light -5-  .

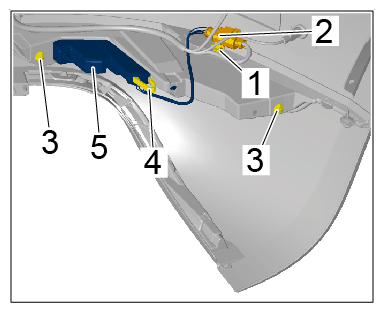

G15162755Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Reversing light

  1. 1.1 Pull off line bracket -1-  .
  2. 1.2 Release and unplug electric plug connection -2-  .
  3. 1.3 Unscrew fastening screws -3-  .
  4. 1.4 Open locking lug -4-  and remove reversing light -5-  from the rear apron.
