Installing Reversing Light
Information
Check clips. They must not be bent or broken.
Make sure that all locking lugs have engaged correctly.
Check that they are fitted correctly.
- Installation is performed in reverse order. Pay particular attention to the following:

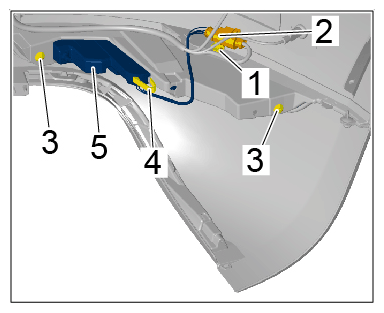

Tighten fastening screws -3- to > Tightening - torque 2.3 Nm (1.7 ftlb.) until secure.
Reversing light
