Removing Light Bulb Control Unit

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

1. Unscrew fastening screws -1-  and loosen light bulb control unit -2-  until the electric plug connection is accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

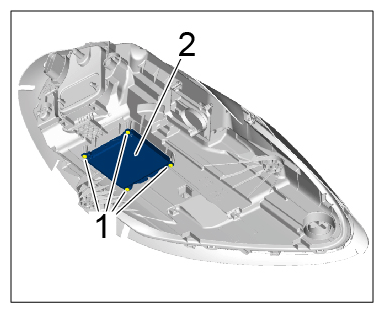

   Fastening screws

2. Loosen light bulb control unit -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

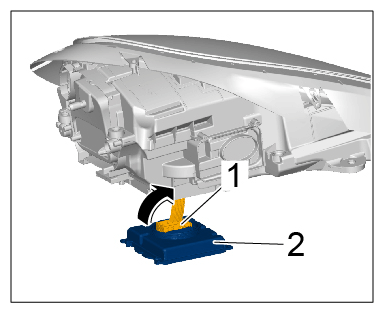

Electric plug connection

1. 2.1 Release and unplug electric plug connection -1-  .
2. 2.2 Remove light bulb control unit -2-  .
