Removing Steering Column Switch

  1. Remove steering-column switch with steering wheel electronics control unit -3-  .

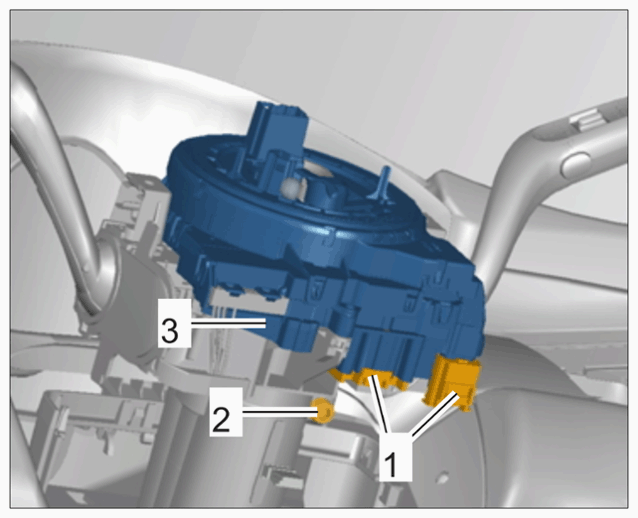

    G15162714Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Steering-column switch

    1. 1.1 Release and unplug electric plug connections -1-  .
    2. 1.2 Loosen clamping screw -2-  .
    3. 1.3 Remove steering-column switch -3-  with steering wheel electronics control unit.
  2. When replacing the steering-column switch:

    Remove steering wheel electronics control unit.

    > 916219 - REMOVING AND INSTALLING CONTROL UNIT FOR STEERING WHEEL ELECTRONICS
