Removing Front-End Electronics Control Unit

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit

  → Remove the ignition key and switch off load before disconnecting or removing load.

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

1. Switch off ignition and keep transmitter key outside of the transmission range (at least 2 m).
2. Loosen relay carrier -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Relay carrier

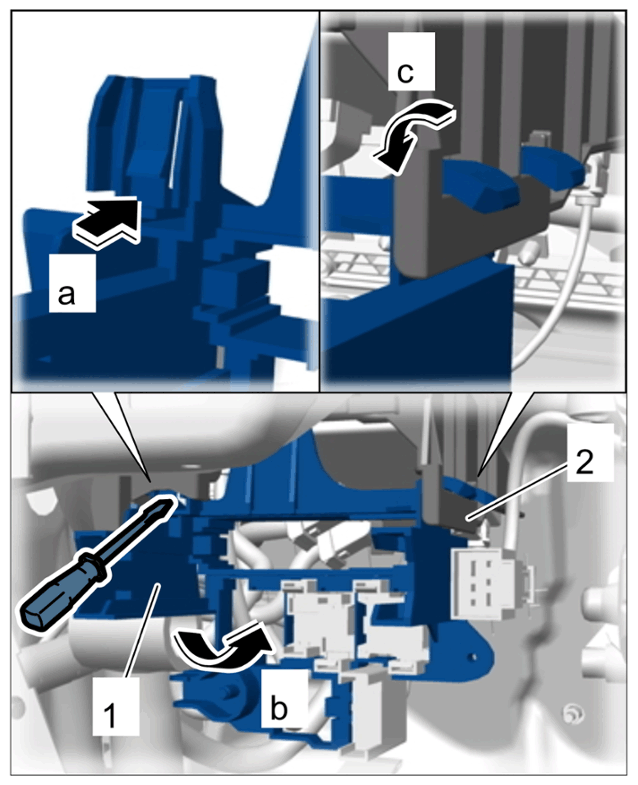

   1. 2.1 Release relay carrier -arrow a-  and swivel it down -arrow b-  .
   2. 2.2 Pull relay carrier -1-  out of the holder -2-  (-arrow c-  ) and set it aside with lines connected.

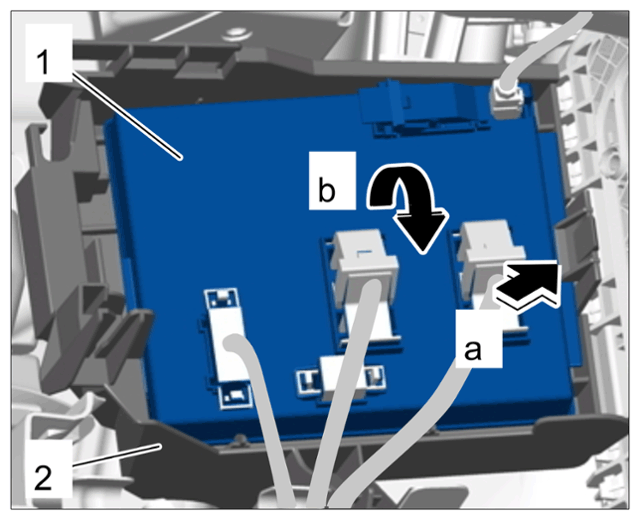

3. Press release -arrow a-  , swivel front-end electronics control unit -1-  down at the front -arrow b-  and remove it from the holder -2-  at the rear.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front-end electronics control unit

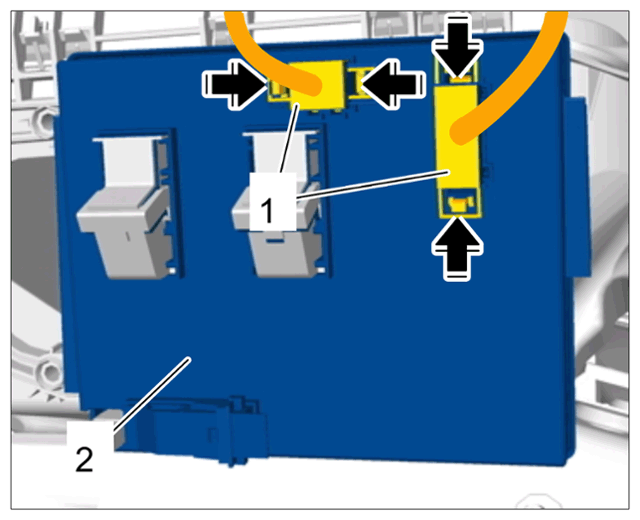

4. Release electric plug connections -1-  and disconnect -Arrows-  from the front-end electronics control unit -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

5. Release swivel bar -1-arrow a-  and swivel it downwards and disconnect electric plug connections from the rear-end electronics control unit -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

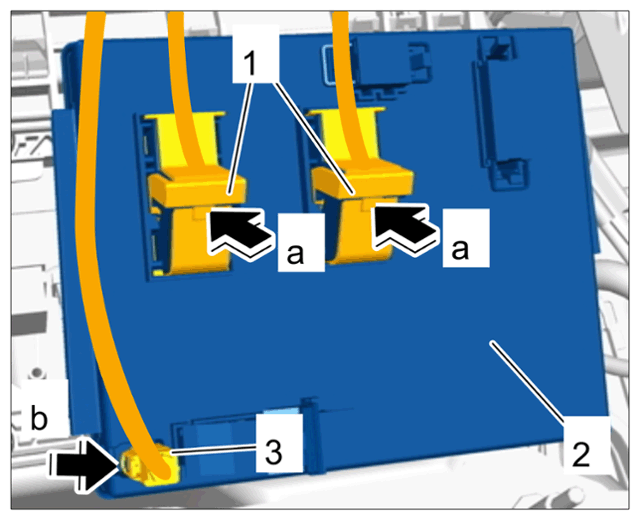

6. Release electric plug connections -3-  and disconnect them from the front-end electronics control unit -arrow b-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections
