Adjusting The Brake Light Switch

Information

The brake light switch must be re-adjusted if the position of the brake pedal is changed after adjusting the brake light switch.

The brake pedal must be unactuated at its end position when adjusting the brake light switch.

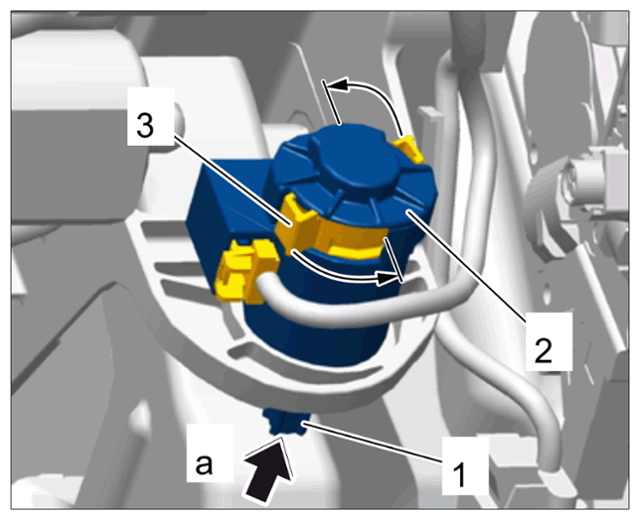

1. Press tappet -1-  fully into the brake light switch -2-  (-arrow a-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake light switch

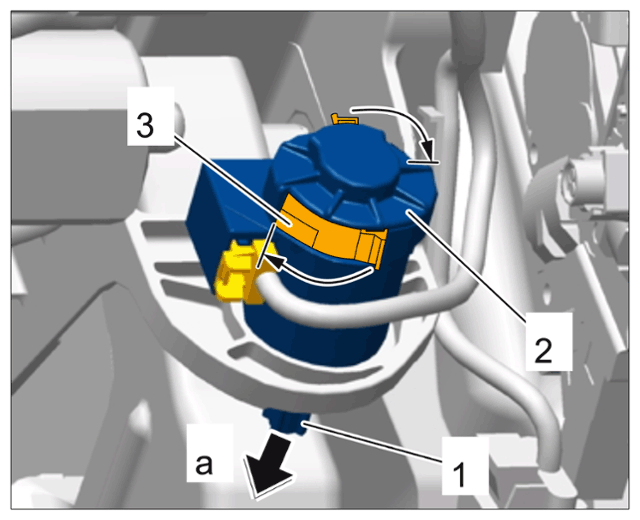

2. Disengage locking ring -3-  and turn it approx. 60° anti-clockwise until it engages.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake light switch

3. Release tappet -1-  on the brake light switch -2-  (-arrow a-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake light switch

4. Disengage locking ring -3-  and turn it approx. 60° clockwise until it engages.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake light switch
