Removing Number Plate Light

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit

  → Switch off ignition and remove remote control before disconnecting or removing electrical load.

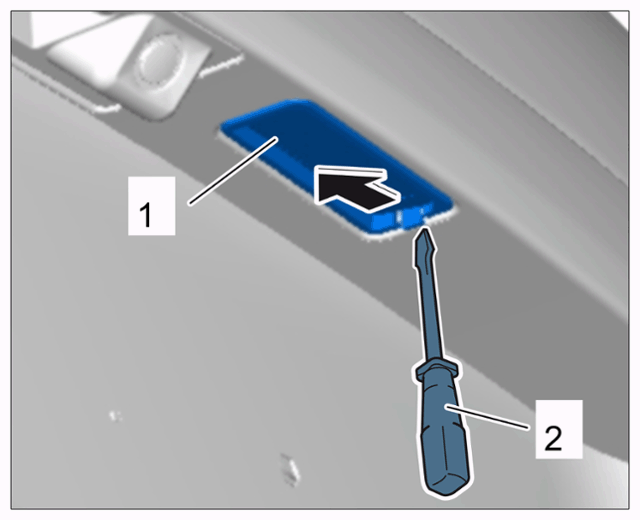

1. Insert a screwdriver -2-  at the recess for the number plate light -1-  and press in direction of arrow -Arrow-  and remove number plate light.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Number plate light

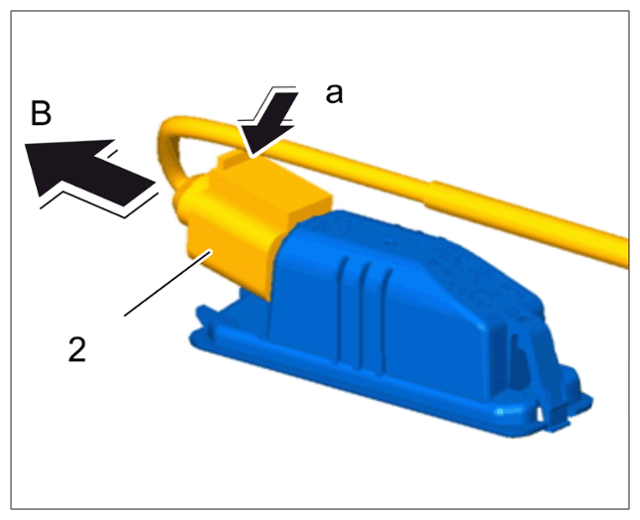

2. Release plug connection -2-  for number plate light -arrow a-  and pull it off -arrow B-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plug connection for number plate light
