Removing Headlight Light Module

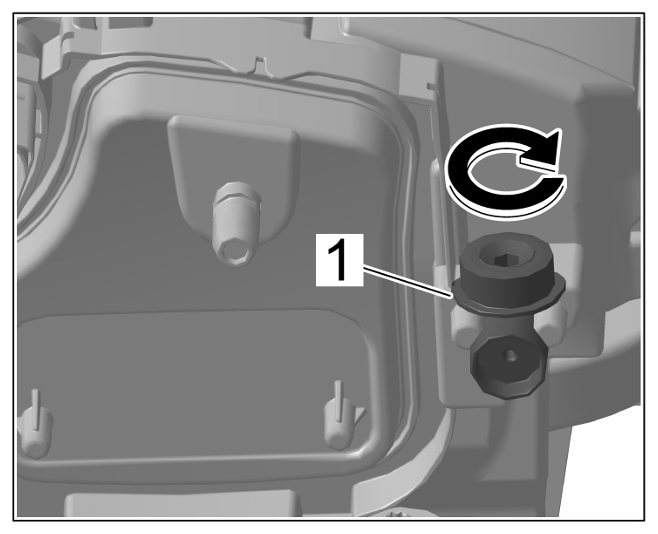

  1. Adjust vertical adjustment -1-  downwards -Arrow-  .
    G15162650Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Vertical adjustment

  2. Remove control unit for daytime driving lights.

    > 941555 - REMOVING AND INSTALLING CONTROL UNIT FOR DAYTIME DRIVING LIGHTS

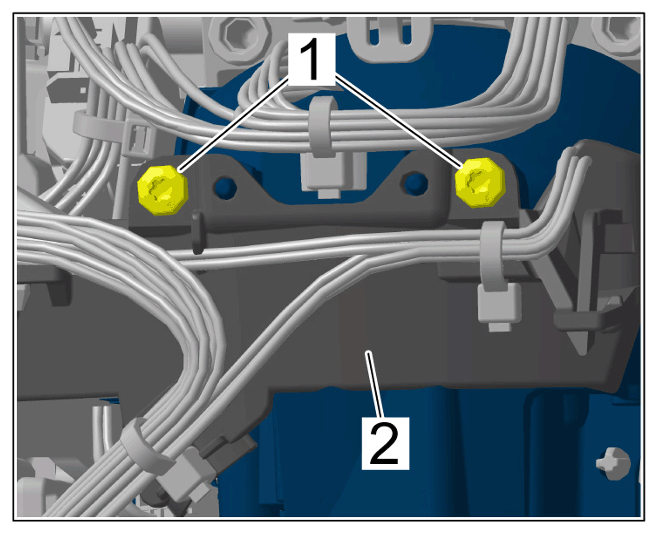

  3. Unscrew fastening screws -1-  and remove air duct -2-  .
    G15162651Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air duct

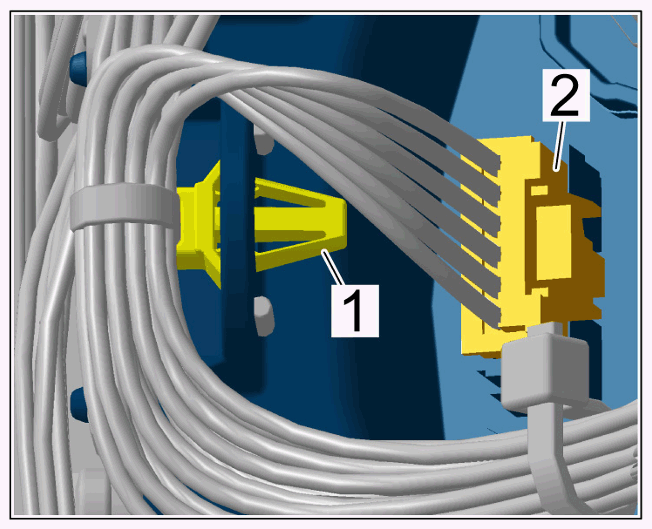

  4. Unclip fixing clip -1-  above the air duct using a suitable tool and release and disconnect electric plug connection for headlight light module -2-  .
    G15162652Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line above air duct

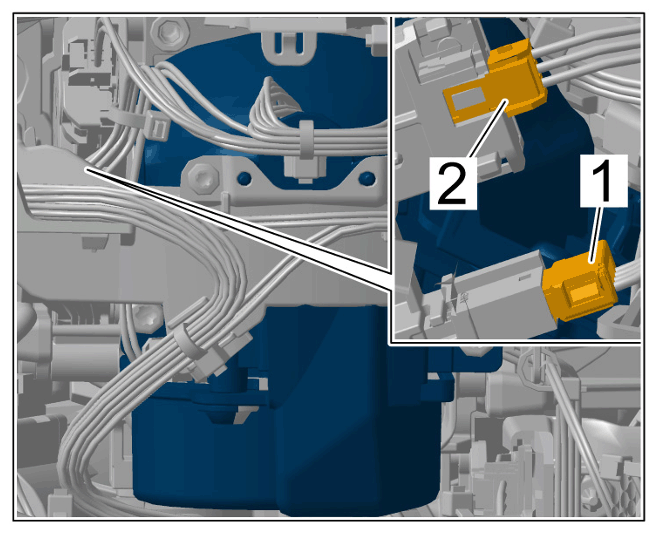

  5. Release and disconnect electric plug connections -1 and 2-  and then set them aside.
    G15162653Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

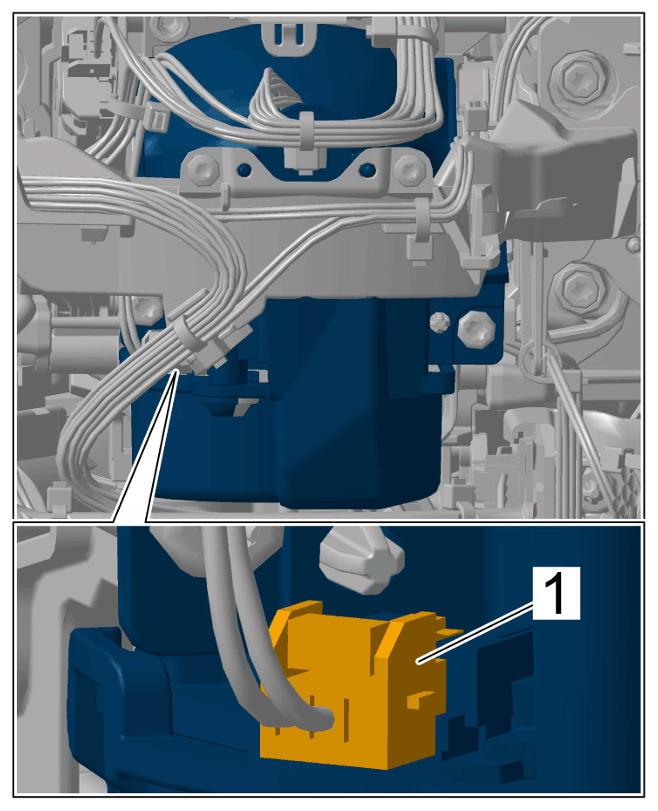

  6. Release and disconnect electric plug connection for the fan -1-  .
    G15162654Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for fan

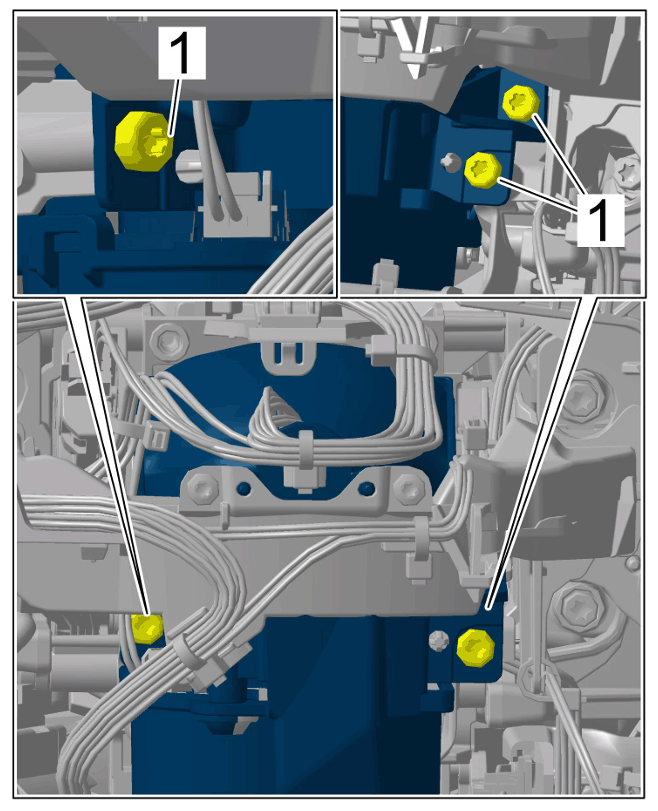

  7. Unscrew fastening screws on headlight light module -1-  .
    G15162655Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws for headlight light module

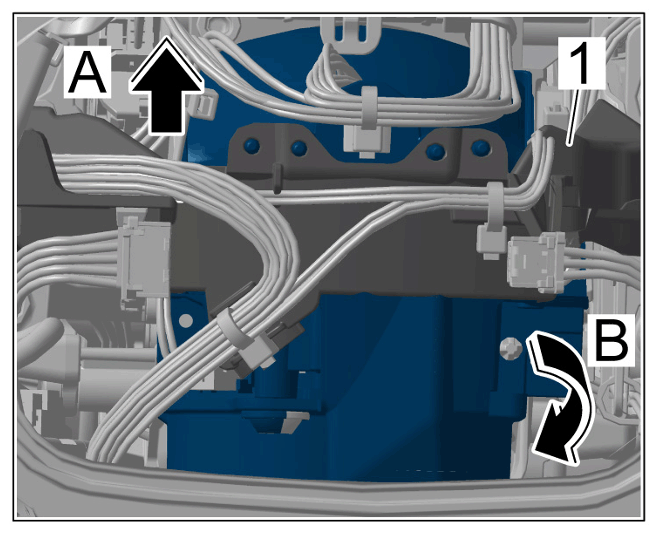

  8. Press air duct -1-  upwards -arrow A-  and swivel headlight light module downwards -arrow B-  .
    G15162656Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Headlight light module and duct

  9. Remove fan.

    > 941555 - REMOVING AND INSTALLING HEADLIGHT FAN
