Disassembling Basic Headlights - Sae

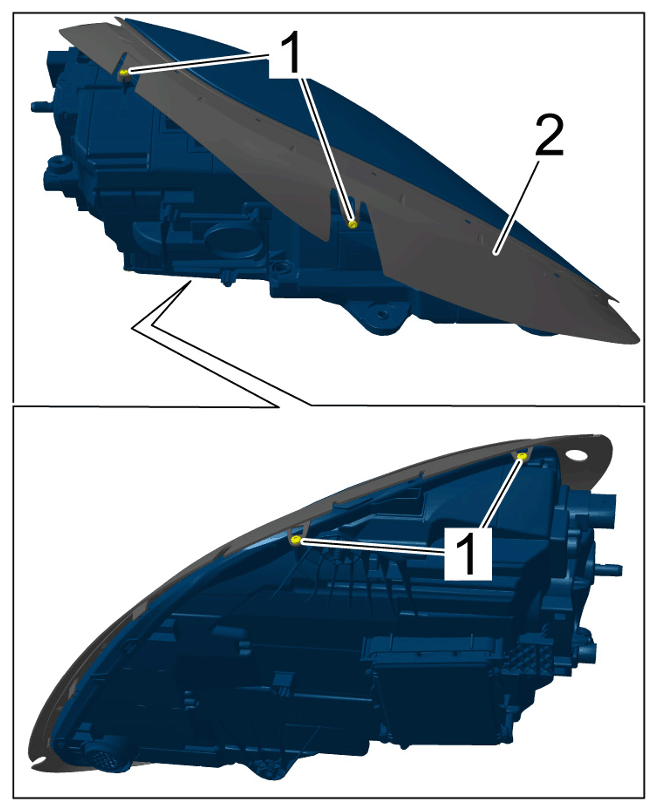

  1. Unscrew fastening screws -1-  and remove cover -2-  .
    G15162625Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

  2. Remove light bulb control unit for basic headlights.

    > 945819 - REMOVING AND INSTALLING LIGHT BULB CONTROL UNIT

  3. Remove headlight ventilation component.

    > 941555 - REMOVING AND INSTALLING HEADLIGHT VENTILATION COMPONENT
