Disassembling Basic Headlights - ECE

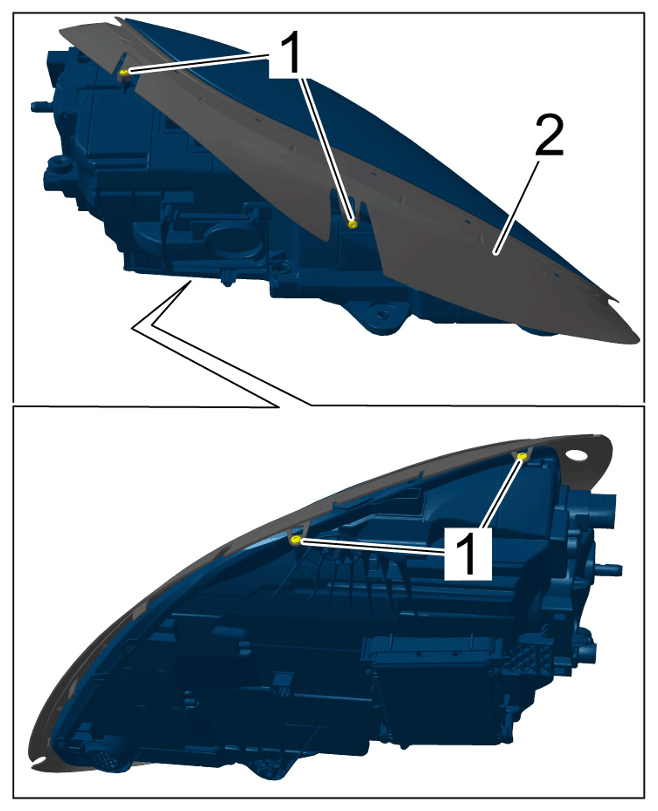

1. Unscrew fastening screws -1-  and remove cover -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover

2. Remove light bulb control unit for basic headlights.

   > 945819 - REMOVING AND INSTALLING LIGHT BULB CONTROL UNIT

3. Remove headlight ventilation component.

   > 941555 - REMOVING AND INSTALLING HEADLIGHT VENTILATION COMPONENT

   Information

   Avoid sawing to prevent plastic particles from getting into the inside of the basic headlight (ECE).

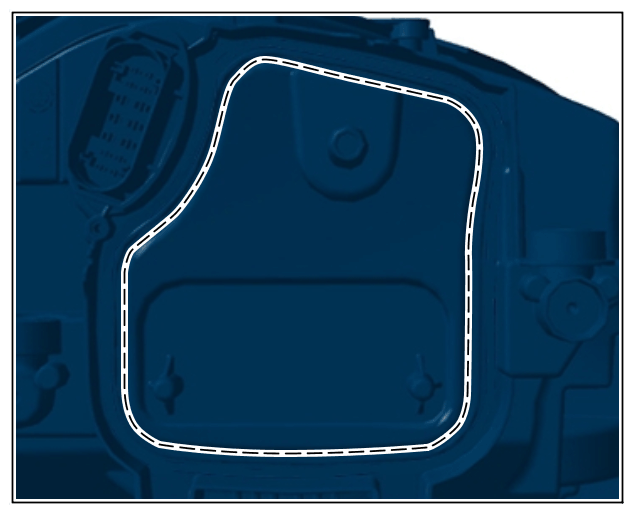

4. Carefully cut open basic headlight (ECE) along the marked area.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover

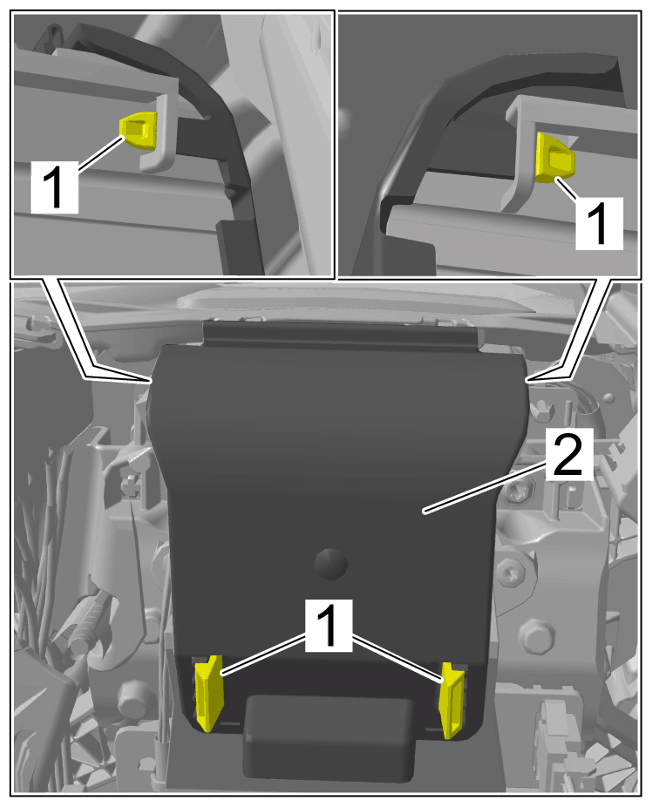

5. Remove inner cover -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Inner cover

   1. 5.1 Adjust basic headlight (ECE) if necessary until all latches -1-  on the inner cover -2-  are accessible.
   2. 5.2 Release catches -1-  and remove inner cover -2-  .

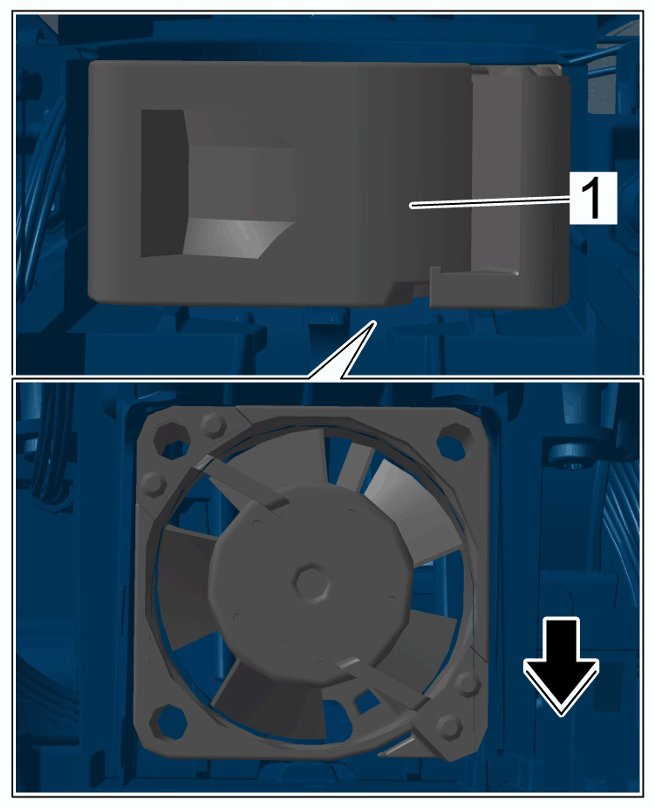

6. Pull out fan -1-  (-Arrow-  ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fans
