Installing Main Headlight

1. Secure the headlight.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

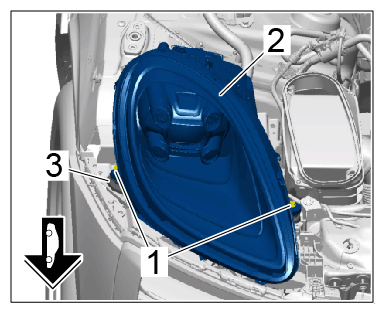

   Headlights

   1. 1.1 Guide the headlight -2-  back into the cut-out for the headlight mounting point -3-  .
   2. 1.2 Tighten fastening screws -1-  to > Tightening - torque 8 Nm (6 ftlb.)  until secure.
2. Connect the headlight.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

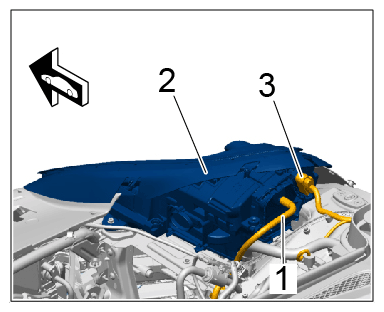

Electric plug connection

1. 2.1 Plug in electric plug connection -3-  on the headlight -2-  until it engages securely.
2. 2.2 Push on breather hose -1-  on the headlight -2-  until it engages securely.
