Removing Main Light Switch

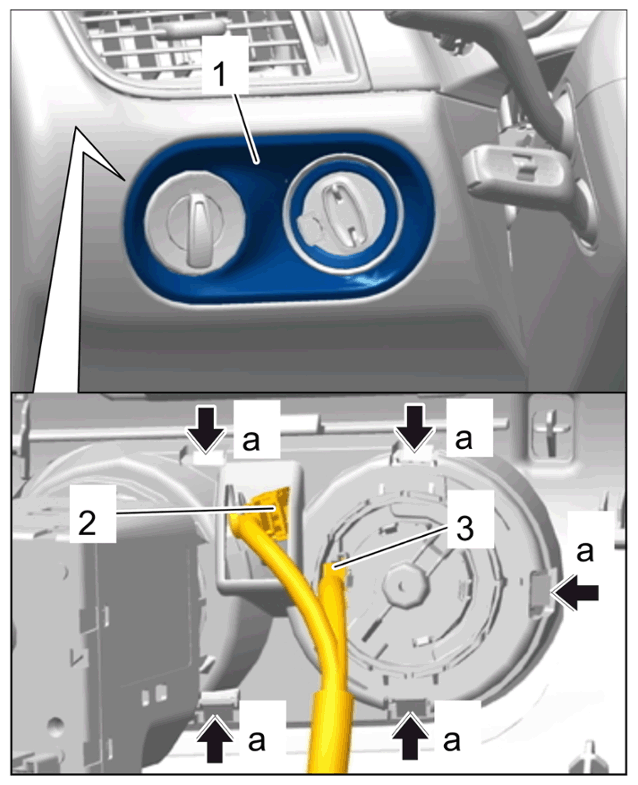

1. Remove trim panel -1-  on main headlight switch and ignition starter switch.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Trim panel on main headlight switch

   1. 1.1 Release and disconnect electric plug connection -2-  for ignition starter switch light.
   2. 1.2 Unclip locking lugs -arrows a-  and remove trim panel -1-  .
2. Release and disconnect electric plug connection -3-  from main headlight switch.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

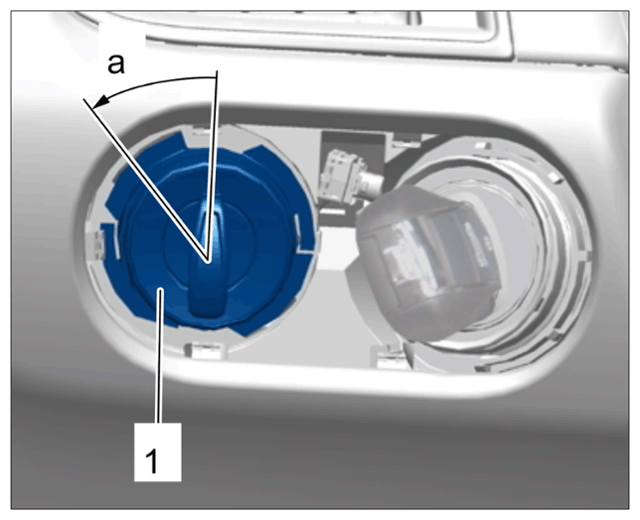

3. Turn main headlight switch -1-  approx. 40° anti-clockwise -a-  and remove it from the trim panel under the dashboard at the driver's side.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Main headlight switch
