Installing Era GLONASS Emergency Call System

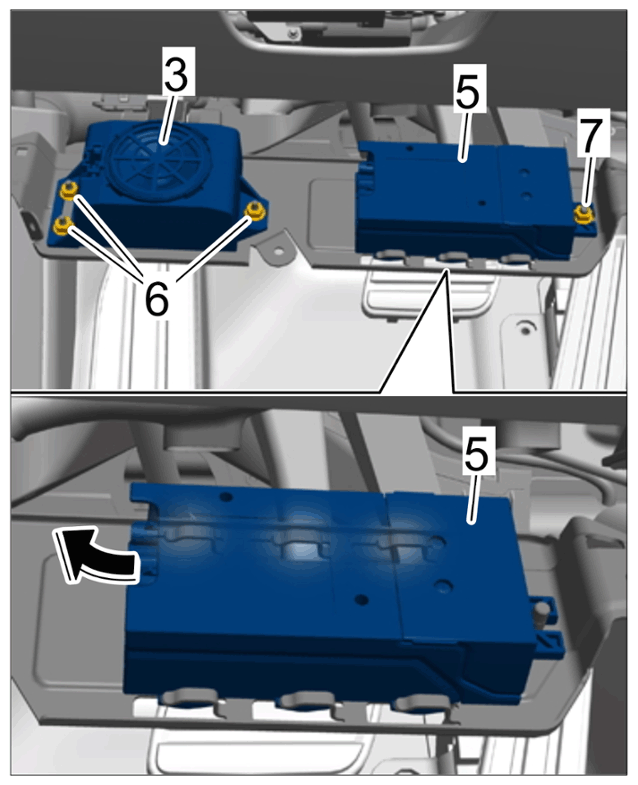

Tighten fastening nut -7-  on the communication box -5-  to > Tightening - torque 3 Nm (2 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Emergency call system

Tighten fastening nuts -6-  for loudspeaker -3-  to > Tightening - torque 3 Nm (2 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Emergency call system

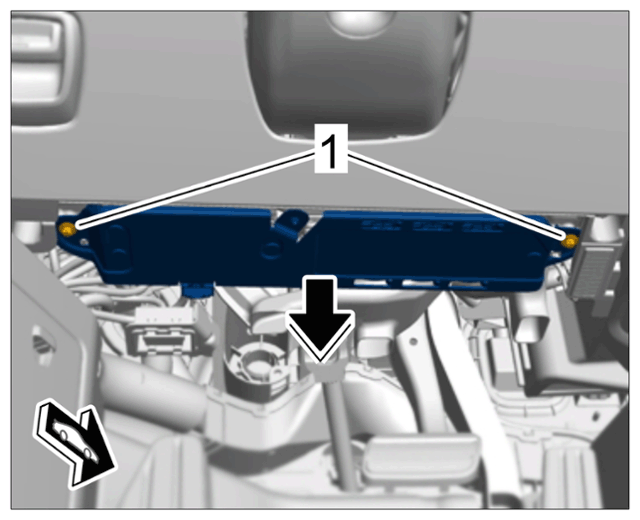

Tighten fastening screws -1-  to > Tightening - torque 13 Nm (9.5 ftlb.)  until secure.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket
