Removing Era GLONASS Emergency Call System

  1. Unscrew fastening screws -1-  and remove holder with emergency call system by pulling it downwards -Arrow-  .
    G15162480Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder

  2. Remove communication box -5-  and loudspeaker -3-  .

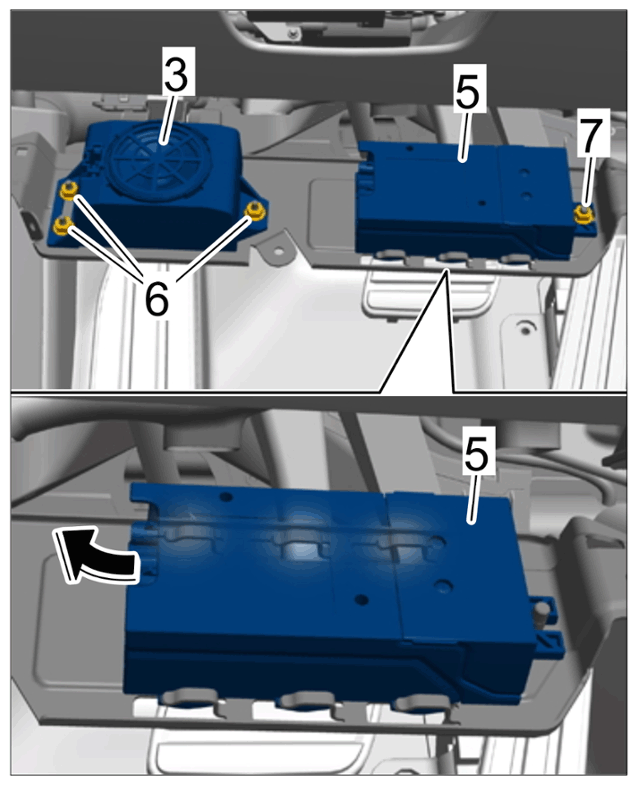

    G15162481Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Emergency call system

    1. 2.1  Release and disconnect electric plug connection on loudspeaker -3-  .
    2. 2.2  Release and disconnect electric plug connection on communication box -5-  .
    3. 2.3  Unscrew fastening nuts -6-  on loudspeaker -3-  and remove the loudspeaker -3-  .
    4. 2.4  Unscrew fastening nut -7-  on the communication box -5-  .
    5. 2.5  Disengage communication box -5-  from holder -Arrow-  and remove it.
