Removing Antenna Amplifier

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical loads before disconnecting or removing them.

1. Switch off ignition and keep transmitter key outside of the transmission range (at least 2 m).

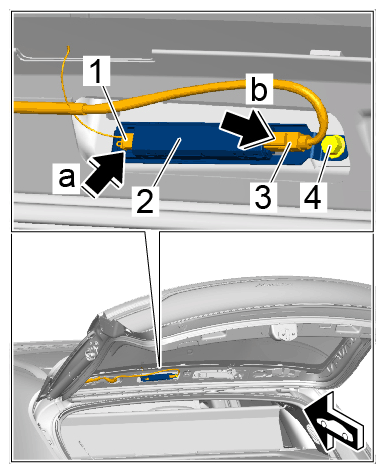

2. Release antenna connector -1-  (-arrow a-  ) and pull it off the antenna amplifier -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Antenna amplifier

   Information

   The number of plug connections can vary, depending on equipment.

3. Pull locking mechanism -3-  out slightly, press it -arrow b-  and pull antenna line off the antenna amplifier -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Antenna amplifier

4. Unscrew fastening screw -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Antenna amplifier

5. Swivel antenna amplifier out and pull it to the right and out of the rear lid.
