Removing Side Camera

  1. Release and disconnect electric plug connection for side camera.

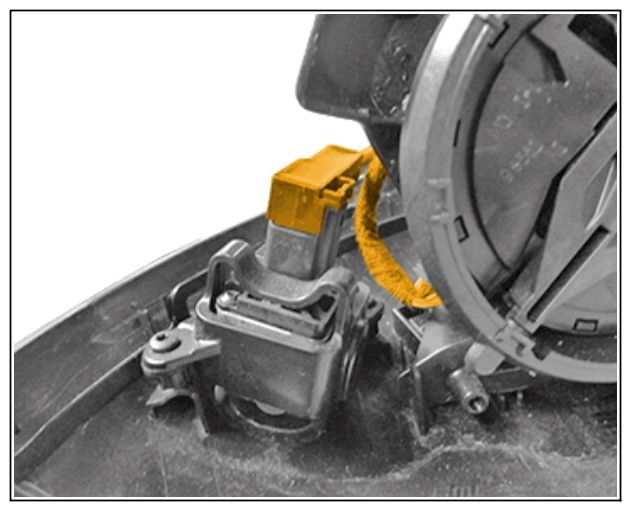

    G15162408Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  2. Unscrew screws on side camera holder.

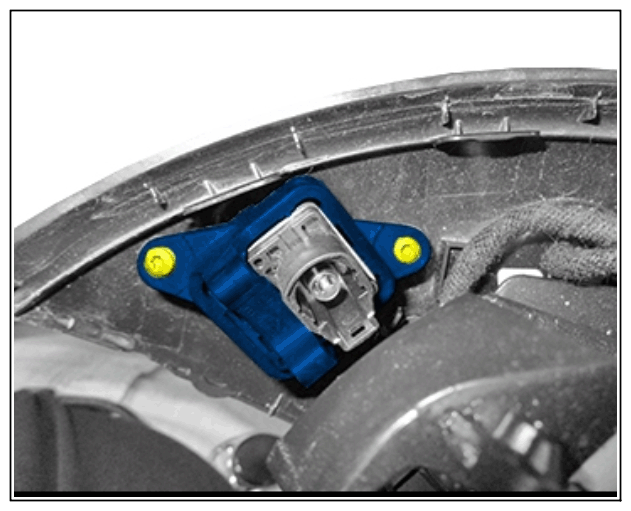

    G15162409Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Side camera holder

  3. Remove holder with camera and guide camera out of the holder.
