Removing Mobile Communication Antenna

  1. Release electric plug connection -1-  and pull antenna line off the mobile communication antenna -2-  .

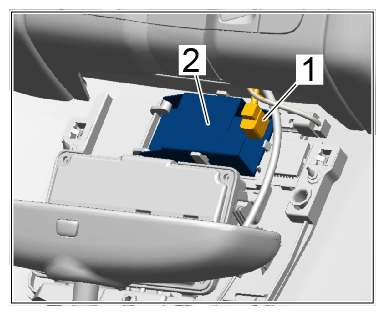

    G15162381Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  2. Remove mobile communication antenna -1-  .

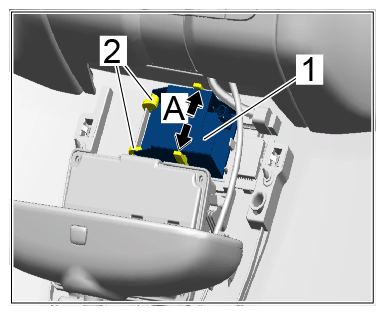

    G15162382Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mobile communication antenna

    1. 2.1  Carefully disengage locking mechanisms at the left and right of the mobile communication antenna -1-arrows A-  and swivel mobile communication antenna -1-  down by approx. 45°.
    2. 2.2  Remove mobile communication antenna -1-  from the holders -2-  .
