Removing Mobile Phone Antenna Amplifier

  1. Remove mobile phone antenna amplifier.

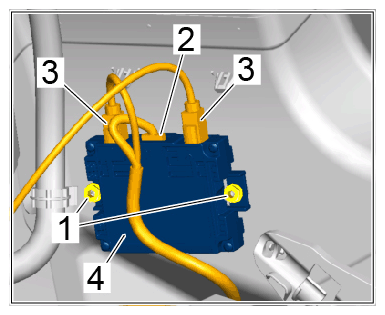

    G15162379Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Antenna amplifier for mobile phone

    1. 1.1  Release and disconnect electric plug connection -2-  and the antenna lines -3-  .
    2. 1.2  Screw off fastening nuts -1-  .
  2. Remove mobile phone antenna amplifier.
