Remove Loudspeaker Booster

NOTIFICATION

Incorrect handling of optical waveguides

• Risk of damage to optical waveguide
  1. → Observe the requirements for working with and installing optical waveguides.

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical loads before disconnecting or removing them.

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

1. Unscrew fastening screws -1-  and remove loudspeaker booster -2-  from the holder.

   The number of screw points can vary depending on the loudspeaker booster version.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

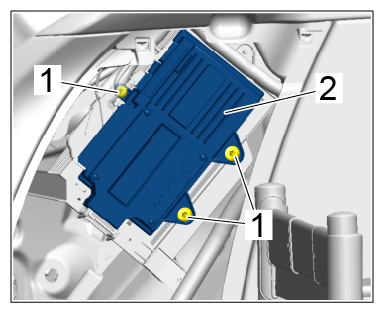

   Loudspeaker booster

2. Release electric plug connections, disconnect them.

   The number of electric plug connections can vary, depending on equipment variant.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

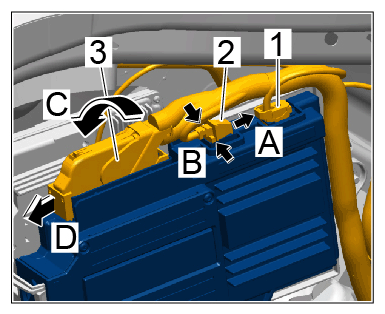

   Electric plug connection

   1. 2.1  Release electric plug connection -1-Arrow A-  and disconnect it from the loudspeaker booster.
   2. 2.2  Release electric plug connection -2-Arrows B-  and disconnect it from the loudspeaker booster.
   3. 2.3  Release electric plug connection -3-Arrows C-  disconnect it from the loudspeaker booster -Arrow D-  .
