Removing Rear Mid-Range Loudspeaker (Door Panel)

  1. Remove rear mid-range loudspeaker (door panel) -2-  .

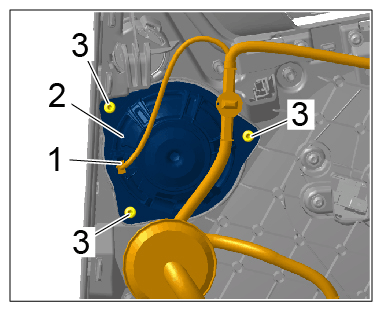

    G15162356Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear mid-range loudspeaker (door panel)

    1. 1.1  Release and unplug electric plug connection -1-  .
    2. 1.2  Unscrew fastening screws -3-  and remove rear mid-range loudspeaker (door panel) -2-  .
