Removing Rear Woofer

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical loads before disconnecting or removing them.

1. Remove rear woofer -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

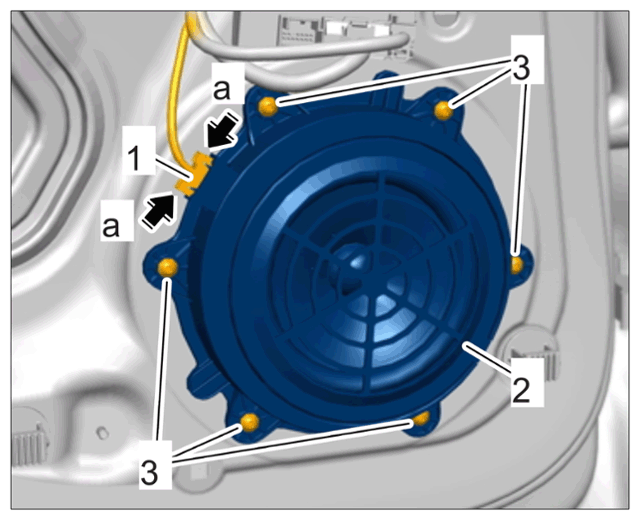

   Rear woofer

   1. 1.1  Release and unplug electric plug connection -1-  .
   2. 1.2  Unscrew fastening screws -3-  and remove rear woofer -2-  .
