Removing Rear Tweeter

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  • → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

    → Switch off electrical loads before disconnecting or removing them.

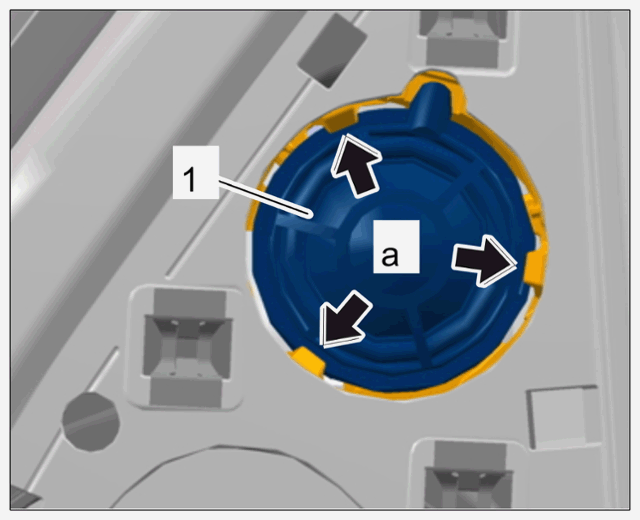

1. Disengage locking mechanisms -arrows a-  and remove rear tweeter -1-  from the rear door panel.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear tweeter

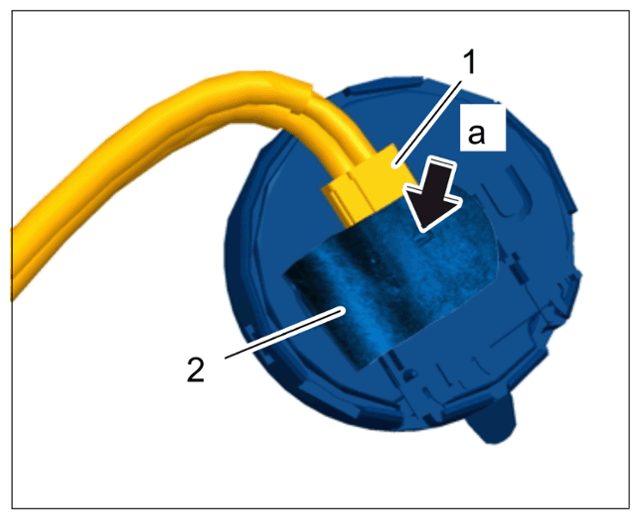

2. Release electric plug connection -1-  (-arrow a-  ) and disconnect it from the tweeter -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection
