Removing Rear Mid-Range Loudspeaker (D-Pillar)

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical loads before disconnecting or removing them.

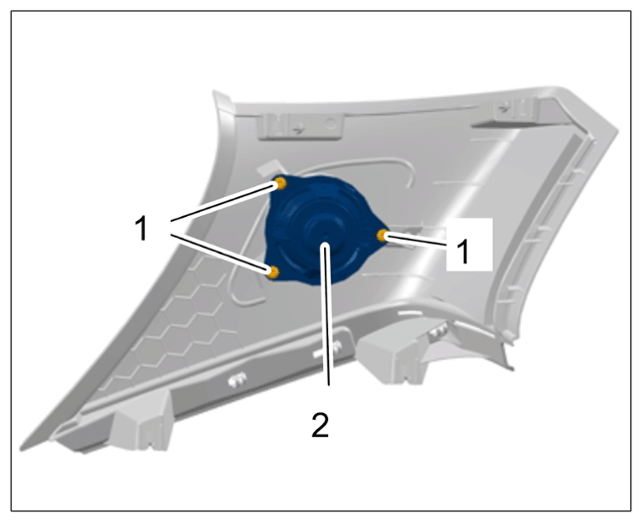

1. Unscrew fastening screws -1-  and remove rear mid-range loudspeaker -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear mid-range loudspeaker
