Removing Mid-Range Loudspeaker In Front Door Panel

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical loads before disconnecting or removing them.

INFORMATION

• Some of the repair illustrations show only one side of the vehicle or a similar component.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

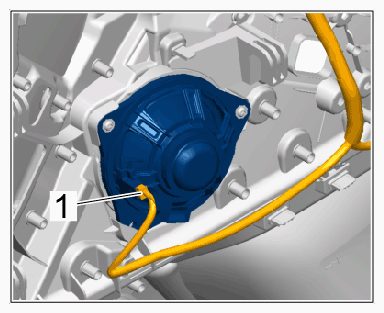

1. Release and unplug electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

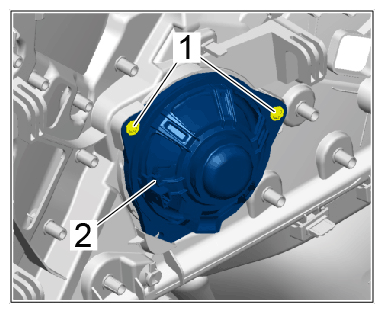

2. Unscrew fastening screws -1-  and remove mid-range loudspeaker -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for mid-range loudspeaker in door panel
