Removing Front Loudspeaker At The Side

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical loads before disconnecting or removing them.

INFORMATION

• Some of the repair illustrations show only one side of the vehicle or a similar component.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

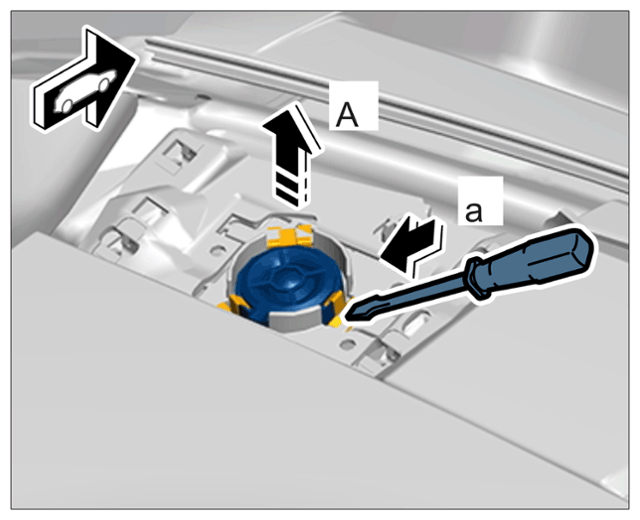

1. Unclip front loudspeaker at the side using a small screwdriver -a-  and remove it -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front loudspeaker, side

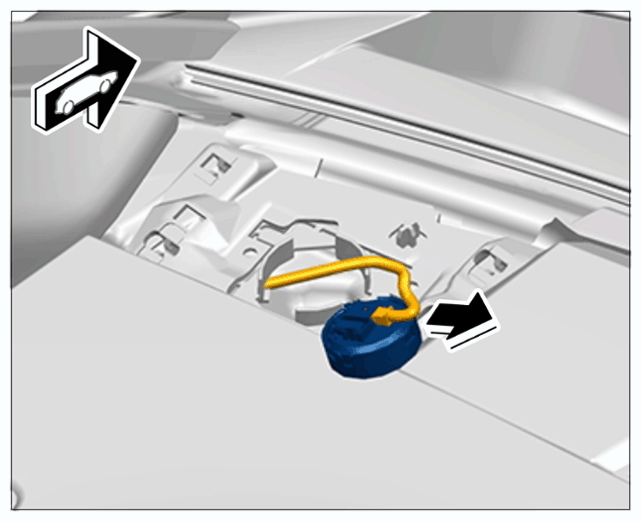

2. Release and disconnect electric plug connection -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for front loudspeaker at the side
