Removing Front Centre Loudspeaker

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical loads before disconnecting or removing them.

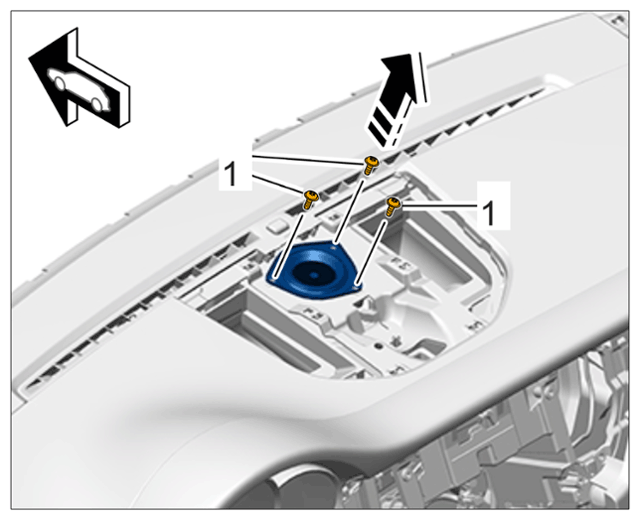

1. Unscrew fastening screws -1-  and remove front centre loudspeaker -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for front centre loudspeaker

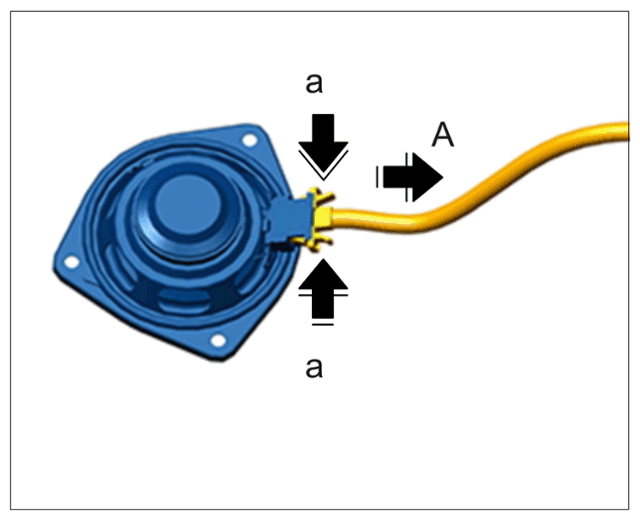

2. Release electric plug connection -a-  and disconnect it -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for front centre loudspeaker
