Installing Front Loudspeaker At The Side

  1. Plug in electric plug connections for front loudspeaker at the side until they engage securely -arrow-  .

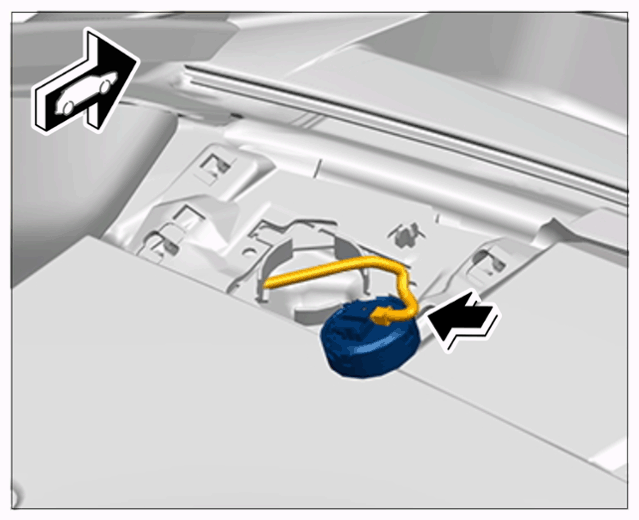

    G15162332Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for front loudspeaker at the side

  2. Clip front loudspeaker at the side into the dashboard -arrow-  . Check that the clips are fitted securely.
    G15162333Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front loudspeaker, side
