Installing Front Centre Loudspeaker

  1. Plug in electric plug connection for front centre loudspeaker until it engages securely -arrow-  .

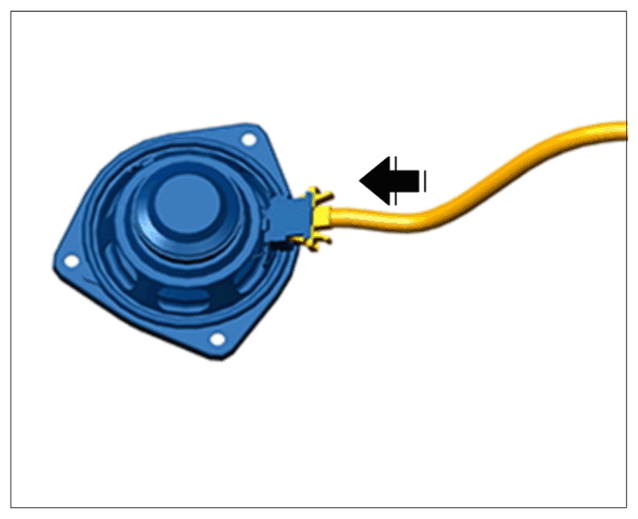

    G15162334Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for front centre loudspeaker

  2. Position front centre loudspeaker on the dashboard and tighten fastening screws -1-  to > Tightening - torque 2.3 Nm (1.7 ftlb.)  .

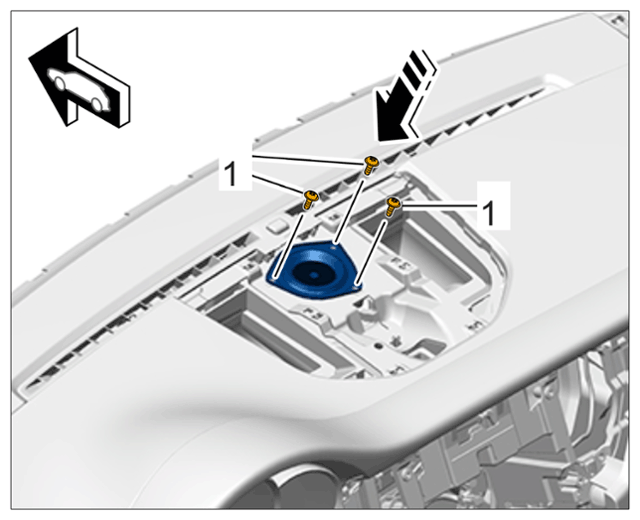

    G15162335Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front loudspeaker, centre
