Removing SDARS Antenna

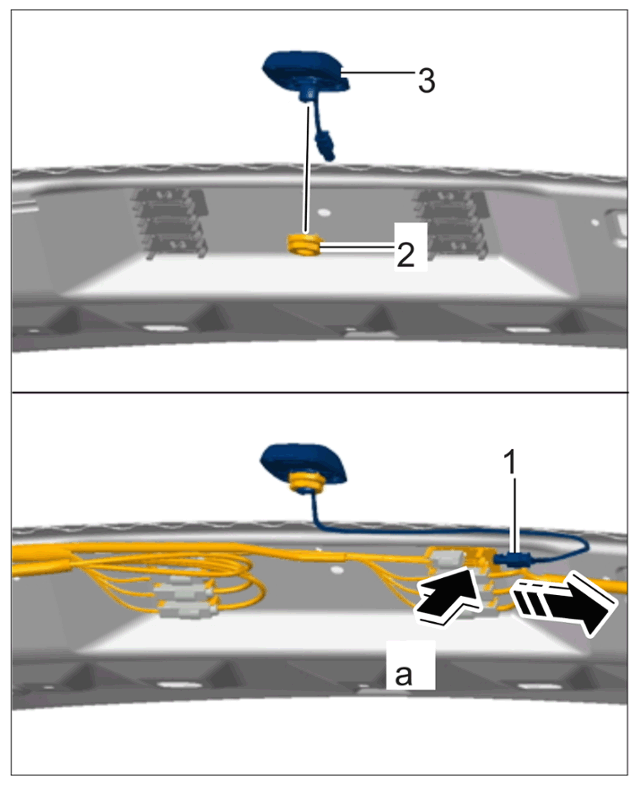

  1. Release and pull off electric plug connection -1-  (-arrow a-  ).
    G15162323Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    SDARS antenna

  2. Loosen fastening nut -2-  and remove SDARS antenna -3-  .
    G15162324Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    SDARS antenna
