Removing Subwoofer

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical loads before disconnecting or removing them.

1. Switch off ignition and pull remote control out of ignition lock.

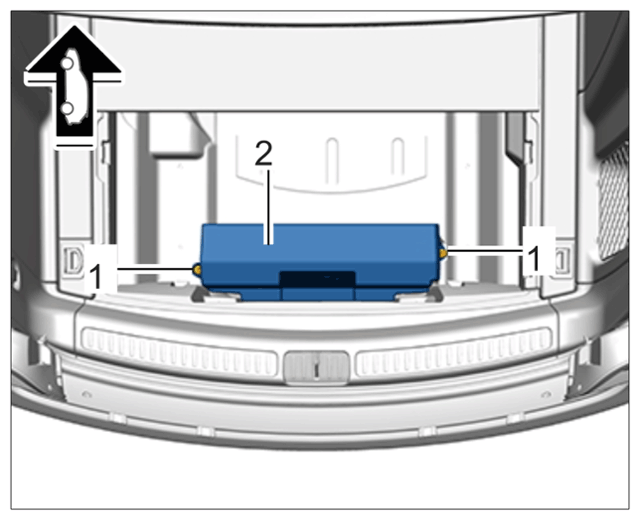

2. Unscrew fastening screws -1-  and carefully move subwoofer -2-  up into the luggage compartment.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Subwoofer

   Information

   Always comply with the regulations for handling ESD-sensitive components!

   • Always wear approved work clothes and shoes when carrying out assembly work.
   • Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
   • Do not touch electric pins and plug contacts.

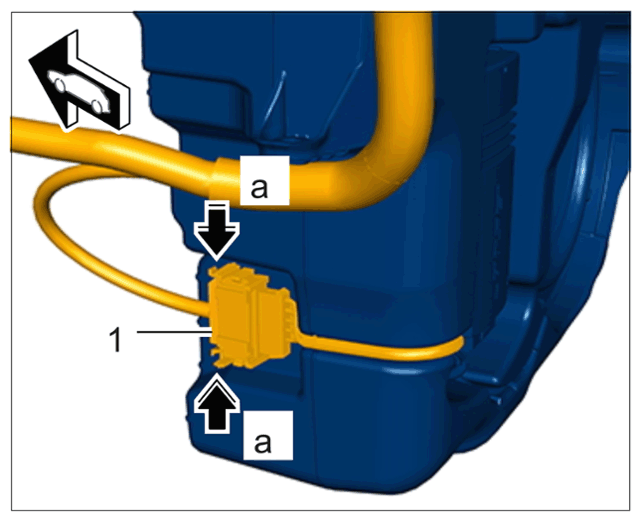

3. Release and pull off electric plug connection -1-arrows a-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection
