Removing GPS Antenna On Windscreen

Disconnect electric connections.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Antenna lines
1. 1.1 Release electric plug connection -1- and disconnect it -arrow A- .
2. 1.2 Release electric plug connection -2- and disconnect it -arrow B- .
3. 1.3 Set antenna lines aside.

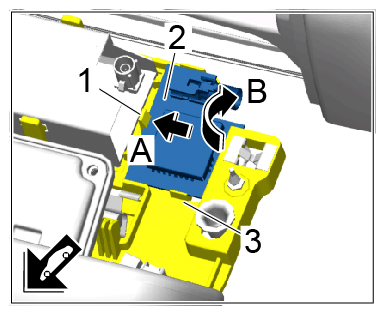

Release locking lug -1- (-arrow A- ) and remove GPS antenna -2- from holder -3- (-arrow B- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

GPS antenna
