Drive Shaft Sealing Ring

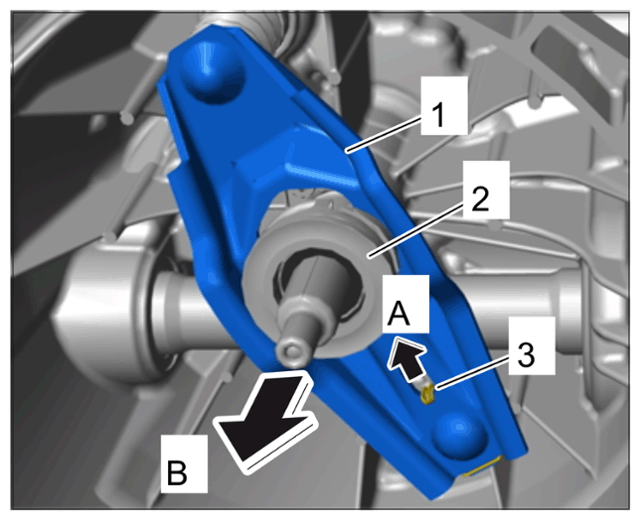

1. Remove release lever and release bearing.
   1. 1.1 Press wire spring -3-  in direction of arrow -A-  and disengage it.
   2. 1.2 Remove release lever -1-  together with the release bearing -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing release lever and release bearing

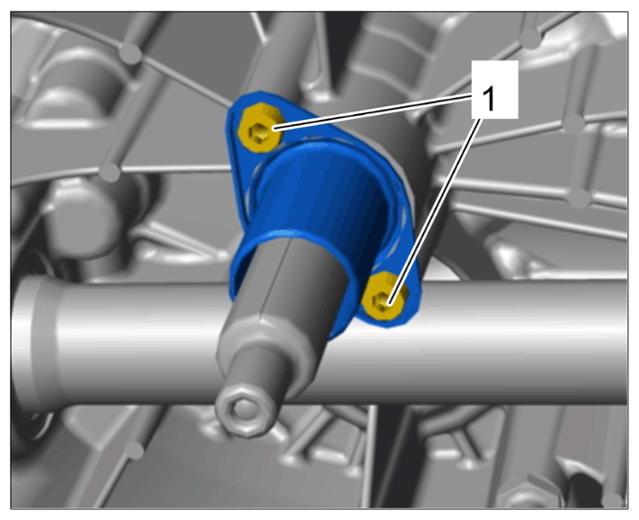

2. Remove guide sleeve.
   1. 2.1 Unscrew and remove screws -1-  .
   2. 2.2 Remove guide sleeve.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws for guide sleeve

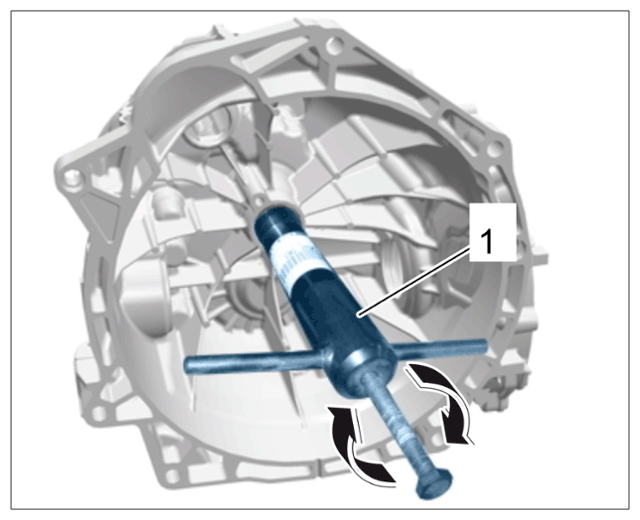

3. Pull out sealing ring using >9629 - puller-1-  .
   1. 3.1 Screw in puller.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Puller 9629

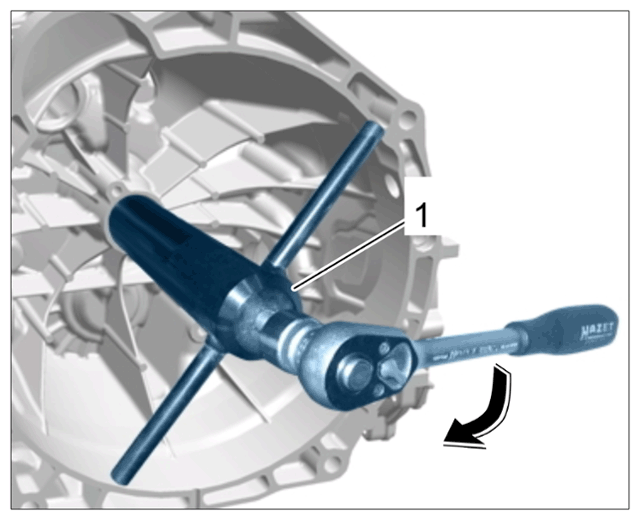

   2. 3.2 Pull out sealing ring by turning the hexagon-head bolt clockwise -arrow-  and hold the puller securely while doing this.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling out drive-shaft sealing ring
