Installing Sealing Ring For Drive Shaft

Information

• Before re-installation: Clean the guide sleeve, transmission input shaft and release lever, particularly at the lubrication points.
• We recommend that you use brake cleaner as the cleaning agent.

1. Pre-position the sealing ring.
   1. 1.1 Grease sealing ring between the dust and sealing lips with Liqui-Moly PU53/WDR.
   2. 1.2 >9255 - Assembly sleeve-1-  must now be pushed over the splines of the drive shaft.
   3. 1.3 Slide sealing ring -2-  over the assembly sleeve.
   4. 1.4 Remove assembly sleeve.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

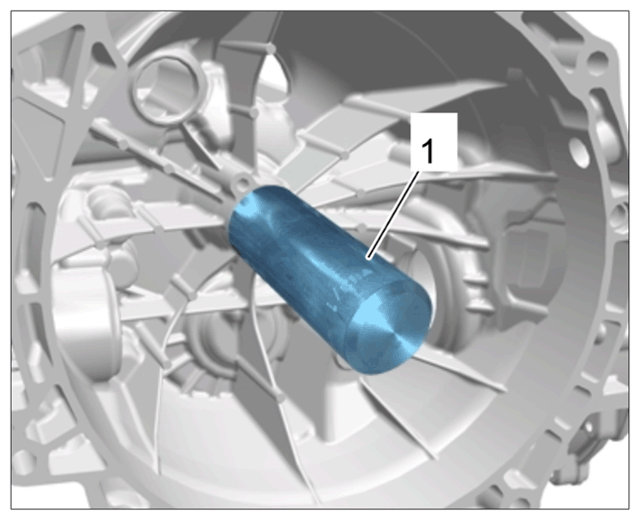

   Assembly sleeve 9255 and sealing ring

2. Tap sealing ring in as far as it will go using >9628 - pressure piece-1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

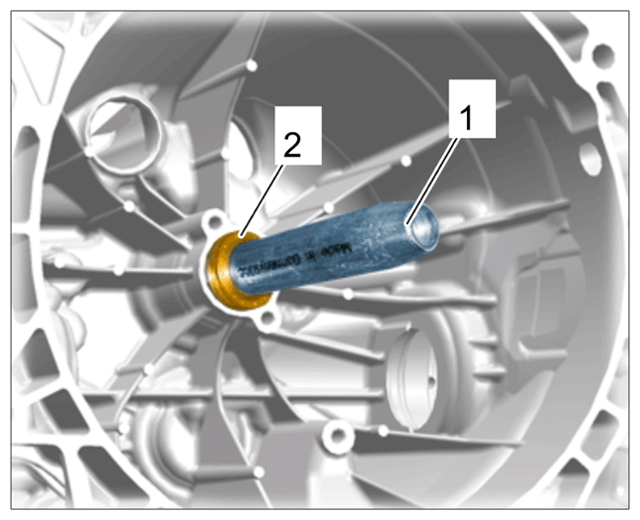

   Fitting sealing ring using pressure piece 9628

3. Fit guide sleeve.
   1. 3.1 Position the guide sleeve.
   2. 3.2 Tighten screws -1-  .

      > Tightening torque 24 Nm (17.7 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

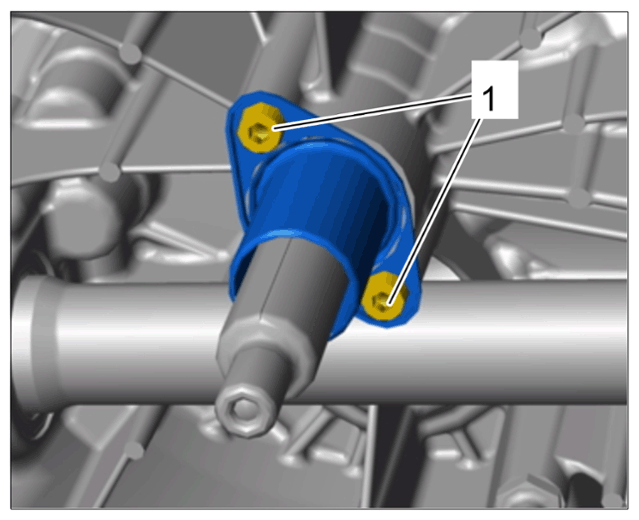

      Screws for guide sleeve

   3. 3.3 Lubricate the guide sleeve with a light coating of Kluberalfa HM83-801. Lubrication point: -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

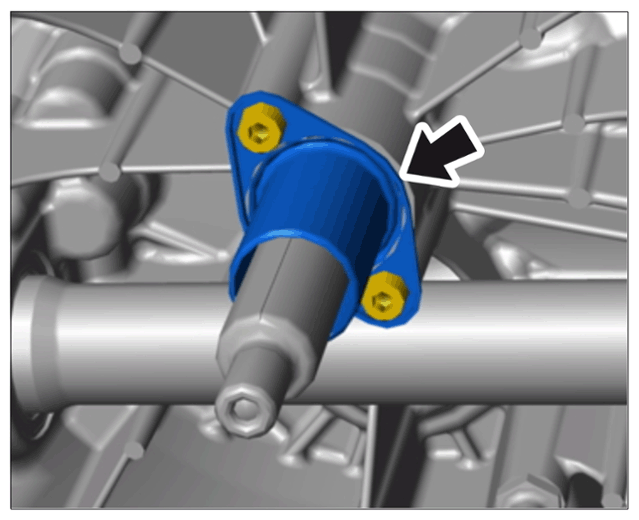

   Lubrication point on guide sleeve

4. Grease the splines of the transmission input shaft with Longtime 3EP.
5. Lubricate release lever with a light coating of Kluberalfa HM83-801 at the contact points. Lubrication points: -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

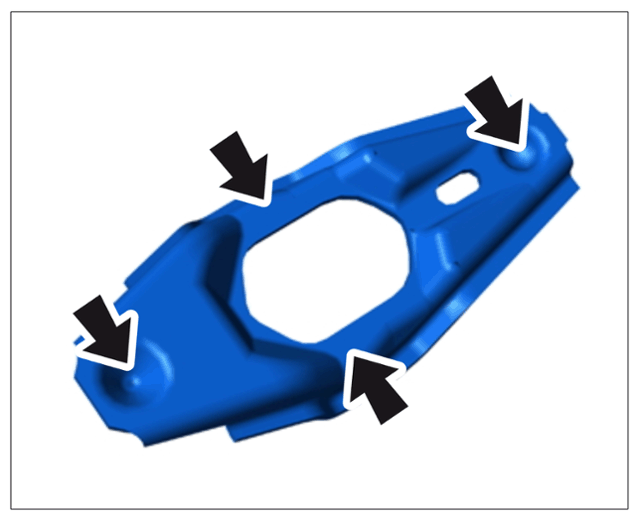

   Lubrication points on release lever

6. Fit release lever and release bearing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

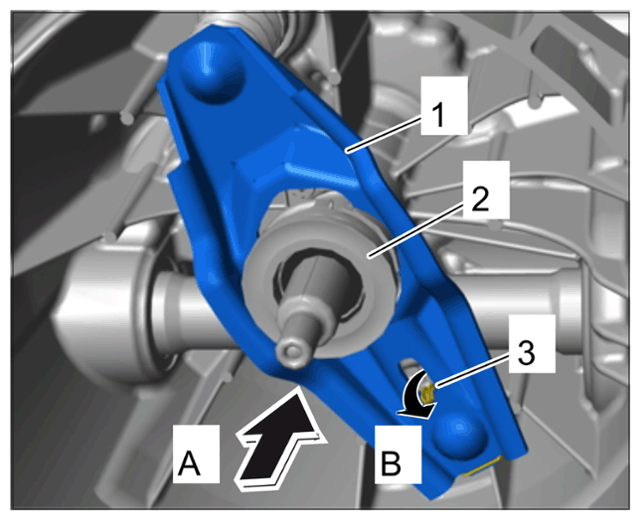

   Fitting release lever and release bearing

   1. 6.1 Position release lever -1-  together with the release bearing -2-  in direction of arrow -A-  .
   2. 6.2 Engage wire spring -3-  in the opening on the release lever -B-  from behind.
