Removing Transmission

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
→ Secure components to prevent them from falling down.

Detach cable duct -1- for the B+ line on the transmission.
1. 1.1 Unscrew three external Torx screws (M6 x 16) -2- . Lay cable duct aside.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

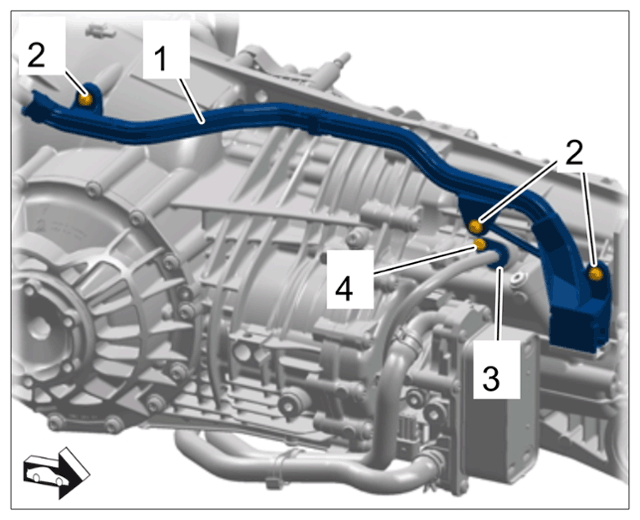

Cable duct for B+ line and speed sender on manual transmission
Disconnect cable plug -3- for pulse sender -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

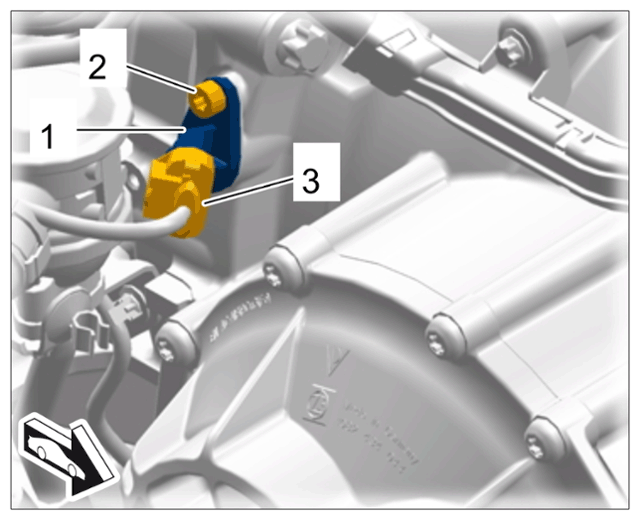

Cable plug for pulse sender
Disconnect vacuum line -1- on the valve block -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

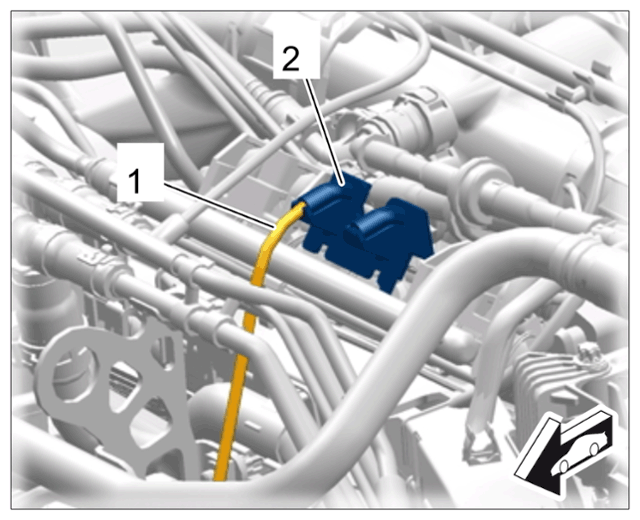

Vacuum line for disc valve
Disconnect coolant hoses -2- at the coolant collection unit.
1. 4.1 Remove spring clamps -1- on the plug-in couplings and pull off hoses.
2. 4.2 Re-fit spring clamps.
3. 4.3 Check O-rings for damage and replace them if necessary.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

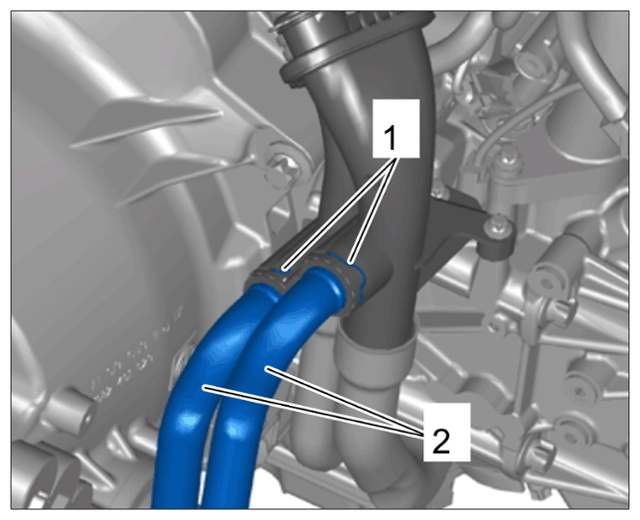

Coolant lines on coolant collection unit
Remove transmission bracket (if not yet removed).
1. 5.1 Unscrew screw (M12 x 140) with collar nut and remove transmission bracket from the bearing.
Secure the transmission -2- with lifting straps -1- .
1. 6.1 >VAS 6100 - Workshop Crane must be ready.
2. 6.2 Fit restraining straps as shown in the illustration.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

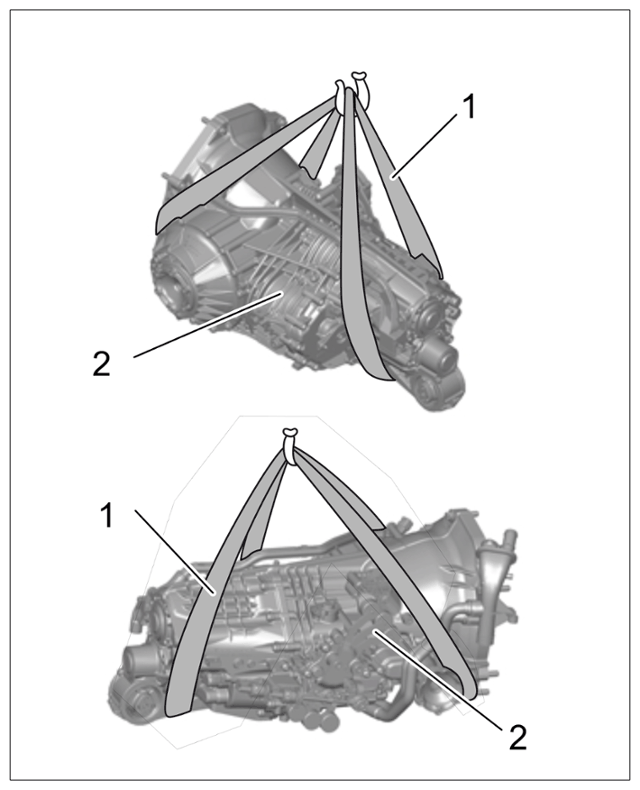

Transmission with lifting strap
NOTE:
Mechanical overload of components
- Component will be damaged irreparably
  → Observe guidelines for assembly and disassembly
Remove transmission.
1. 7.1 Unscrew and remove screws -1 and 2- .
2. 7.2 Unscrew and remove screws -3 to 6- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

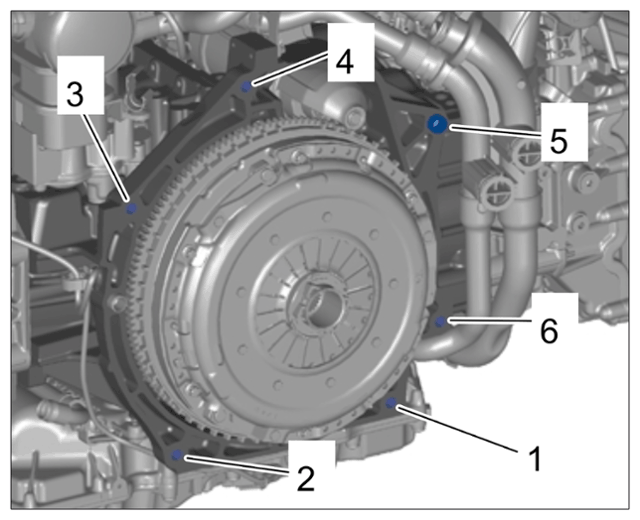

Flange screws
Remove transmission using the workshop crane.
