Removing Transmission

Information

  1. Remove struts -1-  .
    1. 1.1 Unscrew screw (M12 x 40) -2-  with washer.
    2. 1.2 Unscrew screw (M12 x 45) -4-  .
    3. 1.3 Only for Cabriolet vehicles:  Unscrew screw (M8 x 25) -5-  .
    4. 1.4 Unscrew screw (M10 x 45) -3-  and remove struts.

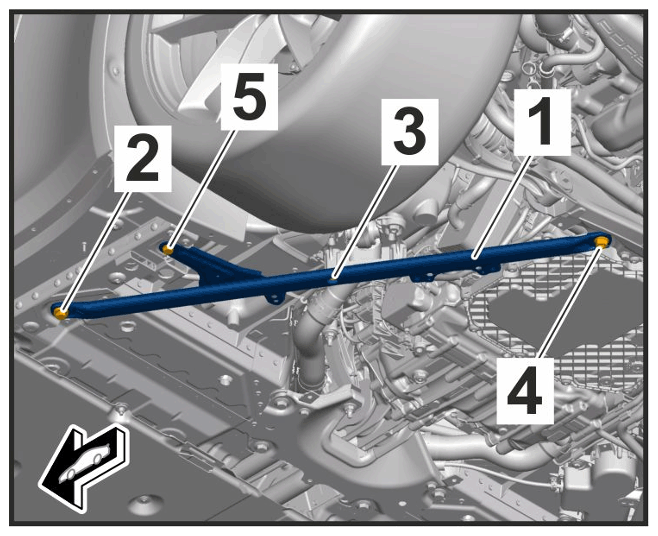

    G15509322Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for strut on Cabriolet

    Information

    • Protect the drive shafts from mechanical damage.

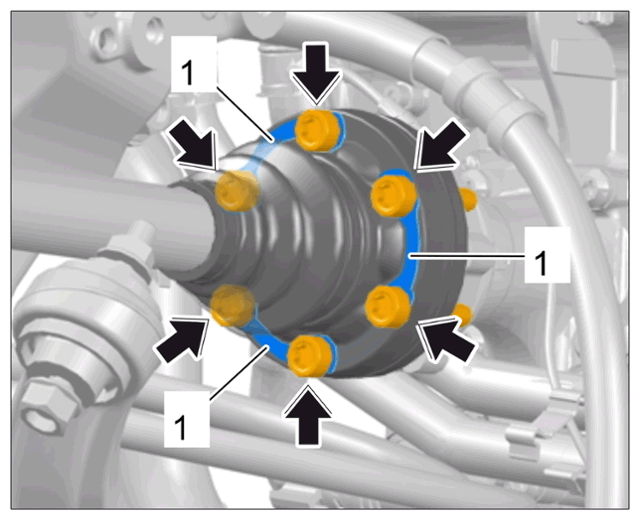

  2. Loosen drive shafts on transmission side.
    1. 2.1 Unscrew and remove screws -Arrows-  between the drive shaft and transmission flange.

      Get another person to counter at the wheel.

    G15509323Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening drive shafts

    Information

    • Handle shift and selector cables with care. Do not bend or kink the cables as this can damage them over time.

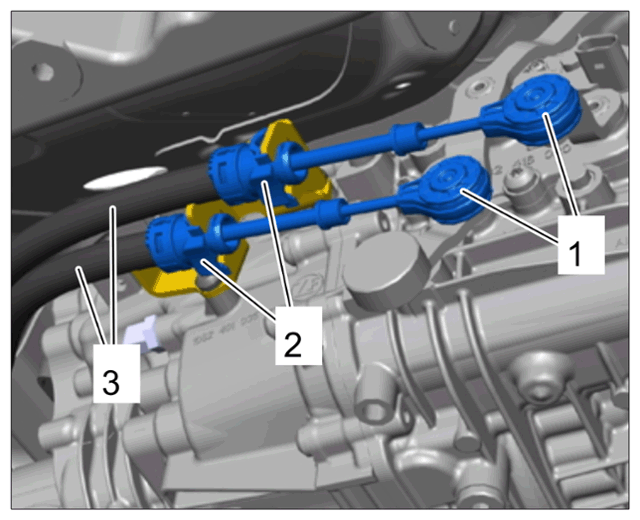

  3. Loosen shift and selector cables on manual transmission.
    1. 3.1 Lever off ball joints -1-  on the exterior shift mechanism using >VAS 6933 - disassembly tool  .
    2. 3.2 Release shift and selector cables -3-  at the support bracket -2-  and disconnect them.
    G15509324Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Shift and selector cables on transmission

  4. Disconnect cable plug for temperature sensor on the transmission.
    1. 4.1 Pull out lock on cable plug -1-  (-Arrow-  ).
    2. 4.2 Release and disconnect cable plug -1-  .
    3. 4.3 Remove claw plate holder -2-  .

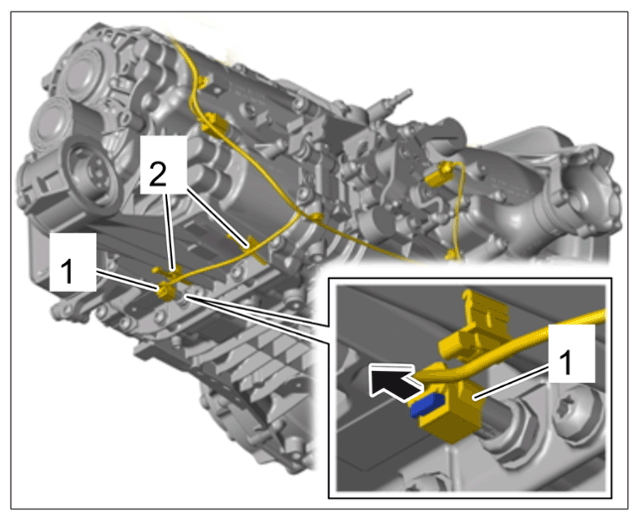

    G15509325Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disconnecting cable plug for temperature sensor

  5. Disconnect cable plug for reverse gear switch on the transmission.
    1. 5.1 Release and disconnect cable plug -1-  .
    2. 5.2 Remove retaining clip -2-  .

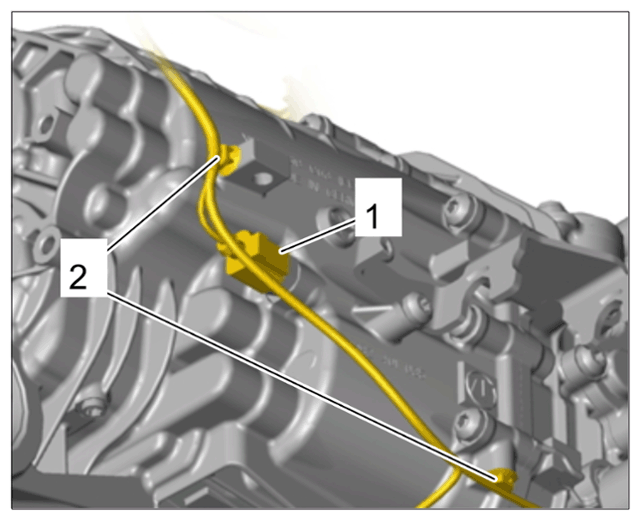

    G15509326Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disconnecting cable plug for reverse gear switch

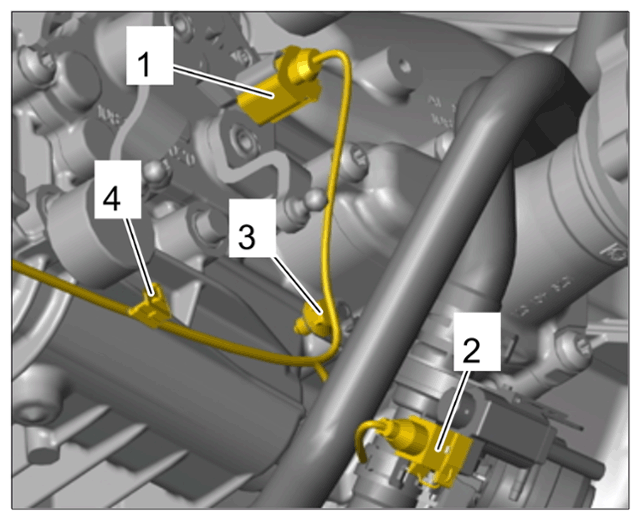

  6. Disconnect cable plug for disc valve and neutral gear sensor on the transmission.
    1. 6.1 Release and disconnect cable plug for neutral gear sensor -1-  .
    2. 6.2 Press holder -3-  together using a pliers and pull it off.
    3. 6.3 Release and disconnect cable plug for disc valve -2-  .
    4. 6.4 Pull off sheetmetal holder -4-  .
    G15509327Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Position of cable plugs and brackets

  7. Disconnect coolant hoses.

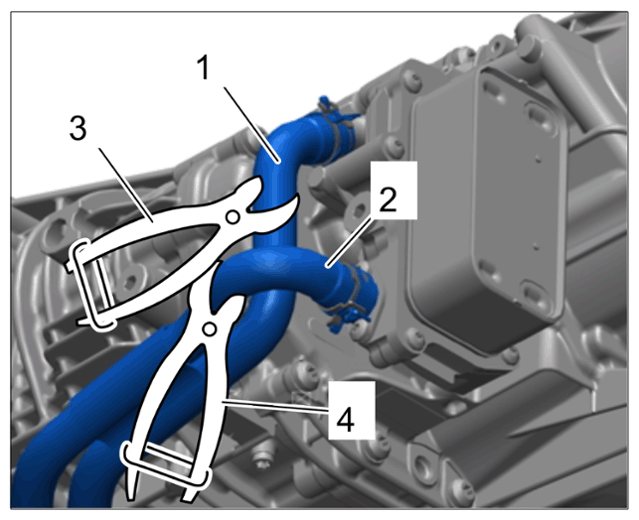

    G15509328Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hose clamping pliers

    1. 7.1 Clamp off coolant hoses -1 and 2-  using >Nr.192 - hose clamping pliers  (-3 and 4-  ).
    2. 7.2 Place a container under the vehicle to collect coolant.
    3. 7.3 Open spring band clamp -3-  on upper coolant hose -1-  .

      Pull off upper coolant hose -1-  .

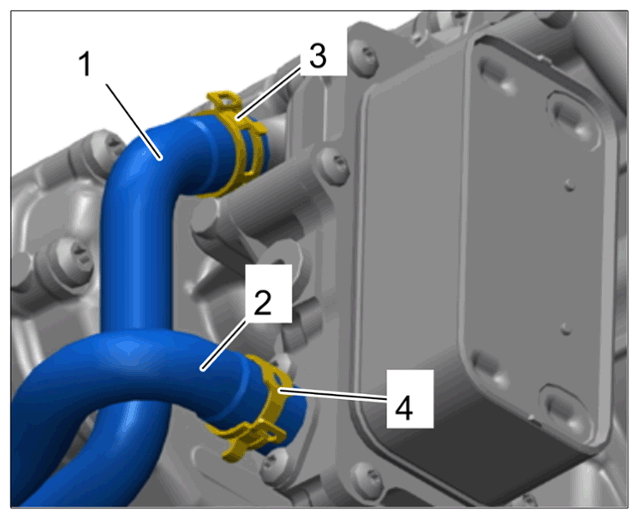

      G15509329Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Spring band clamps

    4. 7.4 Open spring band clamp -4-  on lower coolant hose -2-  .

      Pull off lower coolant hose -2-  .

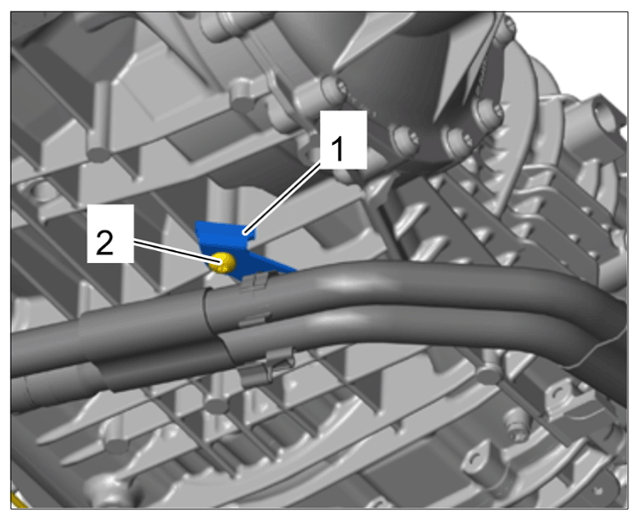

    5. 7.5 Remove holder for coolant hoses.
      G15509330Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing holder for coolant hoses

      1. 7.5.1 Unscrew and remove fastening screw -2-  for the holder -1-  .
    6. 7.6 Set coolant hoses aside.

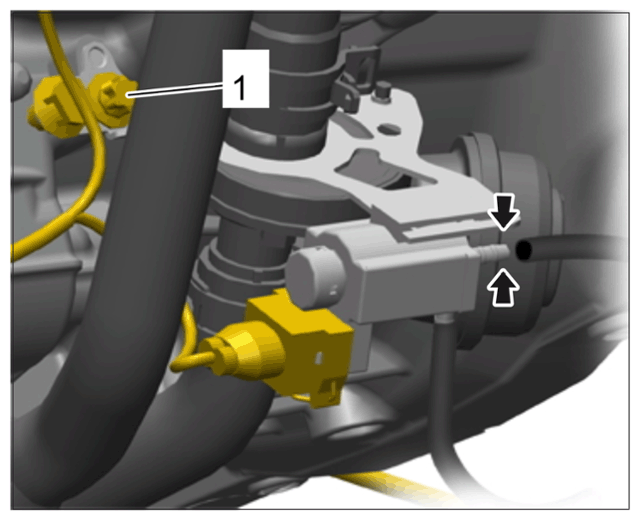

  8. Loosen disc valve holder.
    1. 8.1 Pull off vacuum line for disc valve -Arrows-  .
    2. 8.2 Unscrew and remove fastening screw -1-  on the disc valve holder.
    G15509331Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disc valve holder and vacuum line

    Information

    Make sure that the engine is positioned securely on the transmission jack. To do this, set the correct angle on the transmission jack.

  9. Support the transmission and engine.
    1. 9.1 Support the transmission.
      1. 9.1.1 Position transmission jack -1-  under the transmission.
      2. 9.1.2 Secure the transmission with a restraining strap.
    2. 9.2 Support the engine.
      1. 9.2.1 Position transmission jack -2-  under the engine of the vehicle.

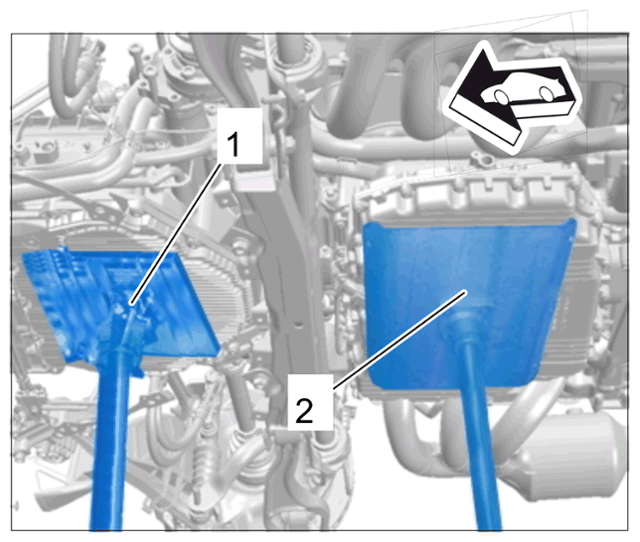

    G15509332Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transmission jack

  10. Remove transmission support -6-  and transmission bracket -2-  .
    1. 10.1 Screw off collar nuts -4-  .
    2. 10.2 Unscrew and remove screws -1-  .
    3. 10.3 Remove transmission bracket -2-  .
    4. 10.4 Screw off collar nut -3-  .
    5. 10.5 Remove transmission support -6-  .
    6. 10.6 Replace screws and nuts.

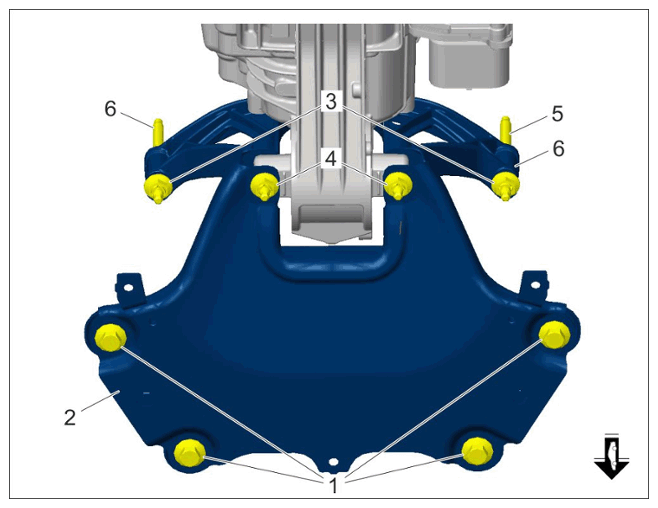

    G15509333Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transmission support and transmission bracket

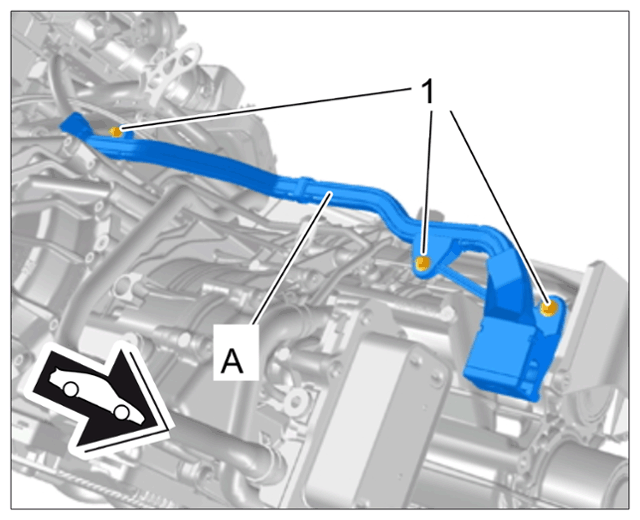

  11. Loosen cable duct for B+ line.
    1. 11.1 Unscrew and remove screws -1-  .
    2. 11.2 Lay cable duct -A -  aside.
    G15509334Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disconnecting B+ line

  12. Disconnect cable plug for speed sensor -1-  on the transmission.

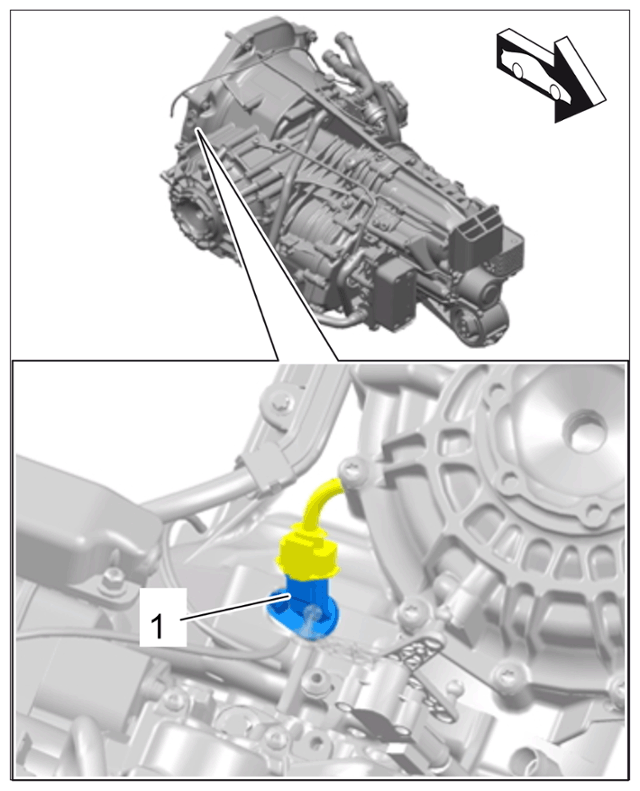

    G15509335Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Speed sensor

    Information

    Do not  disconnect hydraulic line for clutch actuation.

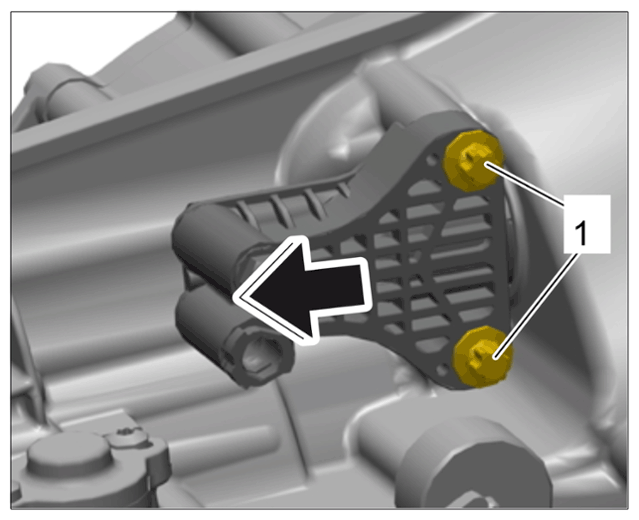

  13. Remove clutch slave cylinder.
    1. 13.1 Disconnect clutch slave cylinder from the transmission.
      1. 13.1.1 Unscrew and remove screws -1-  .
    2. 13.2 Pull clutch slave cylinder out of the mount -Arrow-  .
    G15509336Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing clutch slave cylinder

    NOTE: Mechanical overload of components
    • Component will be damaged irreparably

      → Observe guidelines for assembly and disassembly

    Information

    Check that the guide sleeves between the transmission flange and engine flange remain in the engine flange.

    NOTE: Engine housing overload.
    • Risk of engine damage if housing breaks.

      → Observe specified loosening and tightening sequence!

      → Loosening sequence: Loosen screws from the bottom up.

      → Tightening sequence: Tighten screws from top to bottom.

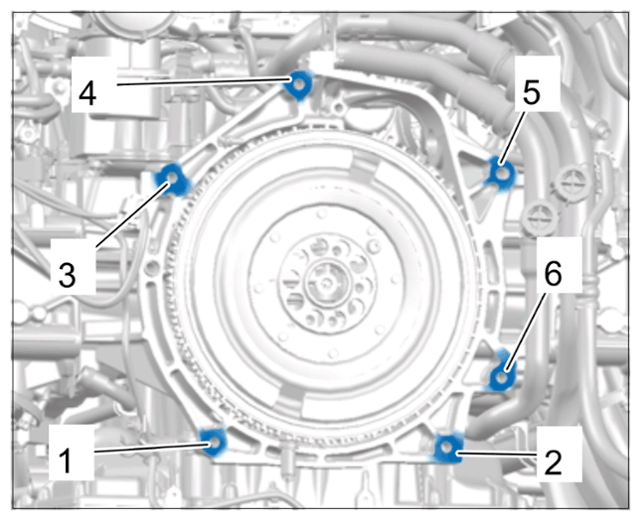

  14. Remove transmission.
    1. 14.1 First unscrew and remove the lower screws -1 and 2-  between the transmission flange and engine.
    2. 14.2 Loosen and unscrew the remaining four screws in the following sequence: -6, 3, 5, 4-  .
    3. 14.3 Gradually guide the transmission out towards the front and downwards by lowering the transmission jack.
Fig 1: Transmission Flange To Engine Screws Loosening Sequence
G15509337Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing transmission flange to engine
