Install Transmission

Raise and guide in the transmission.
1. 1.1 Only tighten screws in the following sequence initially: -5, 1, 3, 6, 4, 2- .
  For the next step, it is important that the screws are not yet tightened!
2. 1.2 Position the transmission 15 mm away from the engine flange.

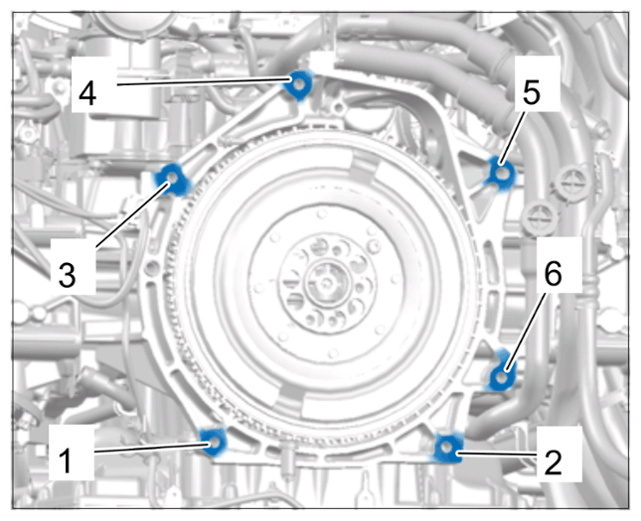

Fig 1: Transmission Flange On Engine Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Threaded joint for transmission flange on engine

Install clutch slave cylinder.

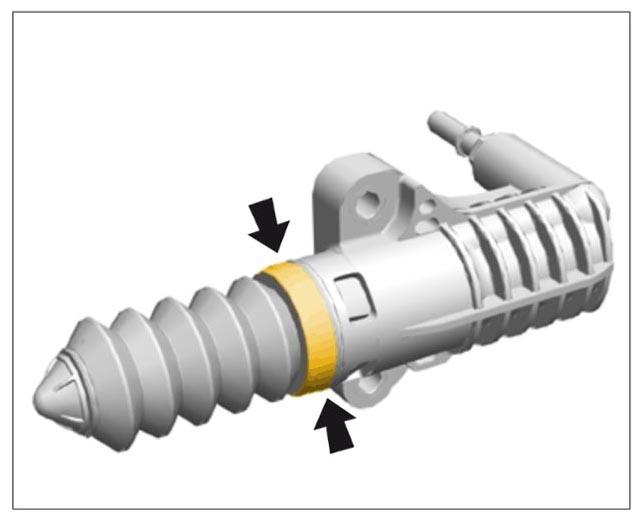

2.1 Grease the clutch slave cylinder at the lubrication point -Arrows- using Kluber Syntheso Glep.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lubrication point on clutch slave cylinder

2.2 Position the clutch slave cylinder.
2.3 Only insert screws -1- first.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clutch slave cylinder

NOTE: Engine housing overload.

Risk of engine damage if housing breaks.
→ Observe specified loosening and tightening sequence!

→ Loosening sequence: Loosen screws from the bottom up.

→ Tightening sequence: Tighten screws from top to bottom.

Attach the transmission flange.
1. 3.1 Fit screws -4, 5, 3, 6- first, then -1 and 2- .
Fig 2: Transmission Flange On Engine Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Threaded joint for transmission flange on engine
Secure the clutch slave cylinder.
1. 4.1 Check that the clutch slave cylinder is fitted correctly.
2. 4.2 Tighten screws -1- on the clutch slave cylinder.
  > Tightening torque 23 Nm (17 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clutch slave cylinder
Tighten all screws in the following sequence -4, 5, 3, 6, 1, 2- using >V.A.G 1332 - torque wrench, 40-200 Nm (30-148 ftlb.) , for example.
> Tightening torque 85 Nm (62.7 ftlb.)

Fig 3: Transmission Flange On Engine Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Threaded joint for transmission flange on engine
Secure cable duct for B+ line.
1. 6.1 Position cable duct -A- .
2. 6.2 Screw in and tighten screws -1- .
  > Tightening torque 13 Nm (9.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing B+ line
Install disc valve holder and connect vacuum line.

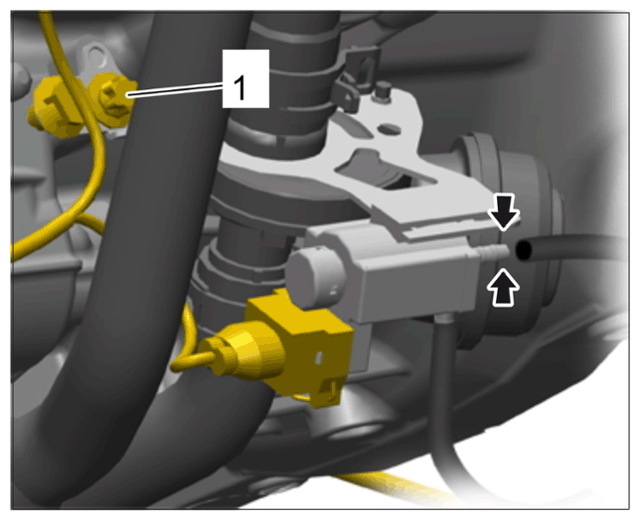

1. 7.1 Screw in and tighten fastening screw -1- on the holder.
  > Tightening torque 13 Nm (9.6 ftlb.)
2. 7.2 Connect vacuum line for disc valve -Arrows- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disc valve holder and vacuum line

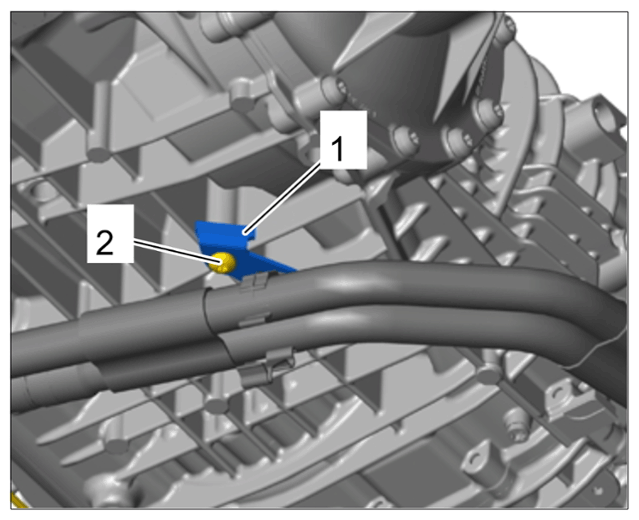

Install coolant hoses.

8.1 Position holder for coolant hoses -1- .

8.2 Screw in and tighten fastening screw -2- .

> Tightening torque 13 Nm (9.6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for coolant hoses

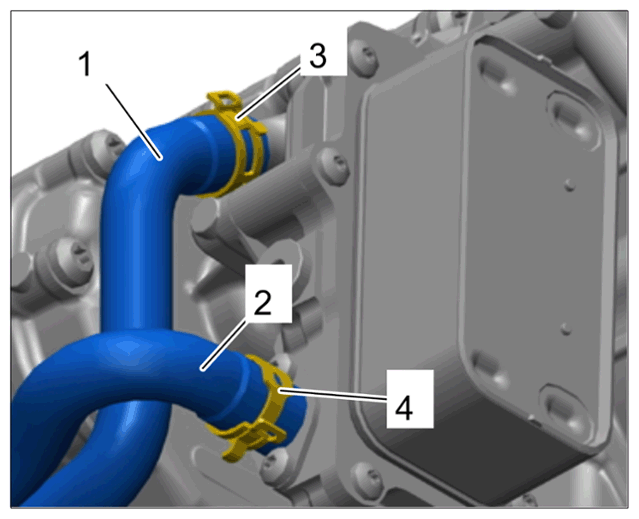

8.3 Connect coolant hoses -1 and 2- and secure with spring band clamps -3 and 4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spring band clamps

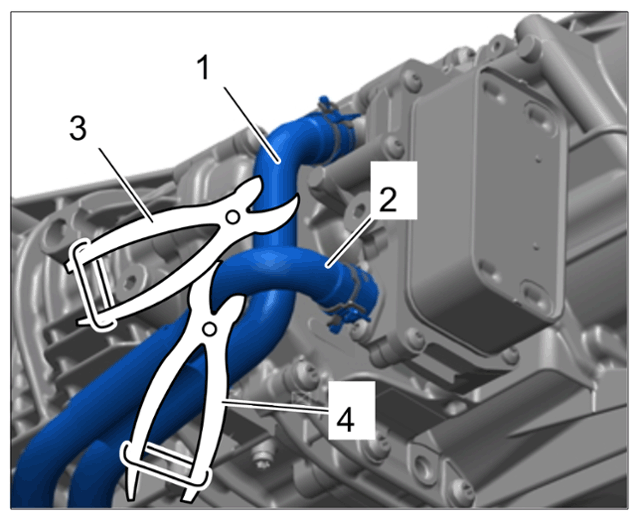

8.4 Remove hose clamping pliers -3 and 4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose clamping pliers

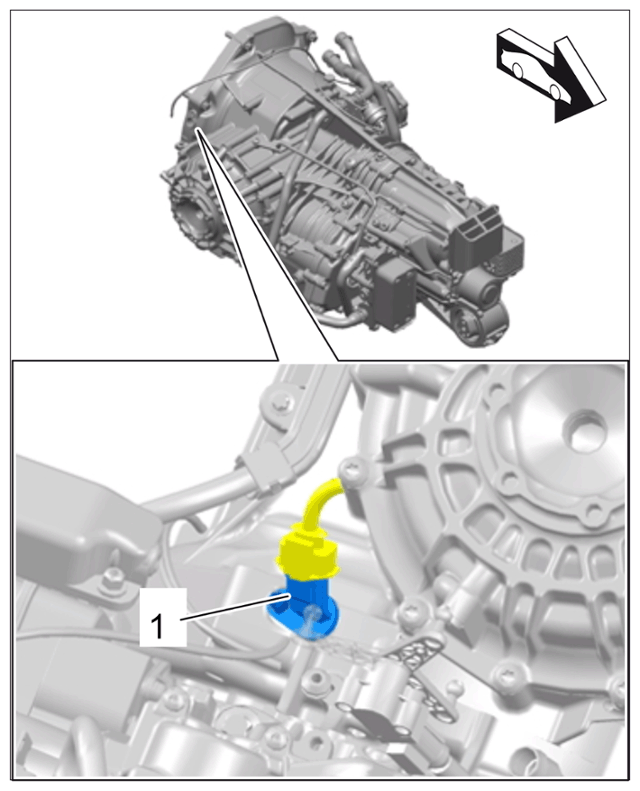

Connect cable plug for speed sensor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Speed sensor
Install transmission support -6- and transmission bracket -2- .

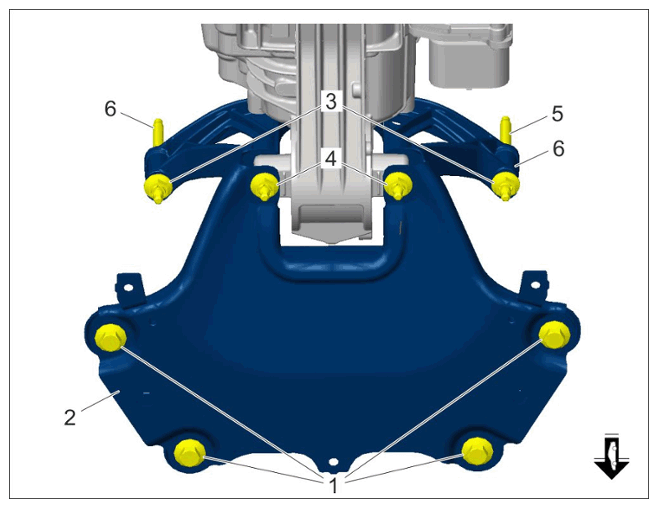

1. 10.1 Position transmission support -6- and screw on and tighten new nuts -3- on the threaded pins.
  > Initial tightening 30 Nm (22.1 ftlb.)

  > Torque angle 60°
2. 10.2 Lift transmission using a transmission jack.
3. 10.3 Position transmission bracket -2- and fit and tighten new screws -1- .
  > Initial tightening 30 Nm (22.1 ftlb.)

  > Torque angle 60°
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission support and transmission bracket

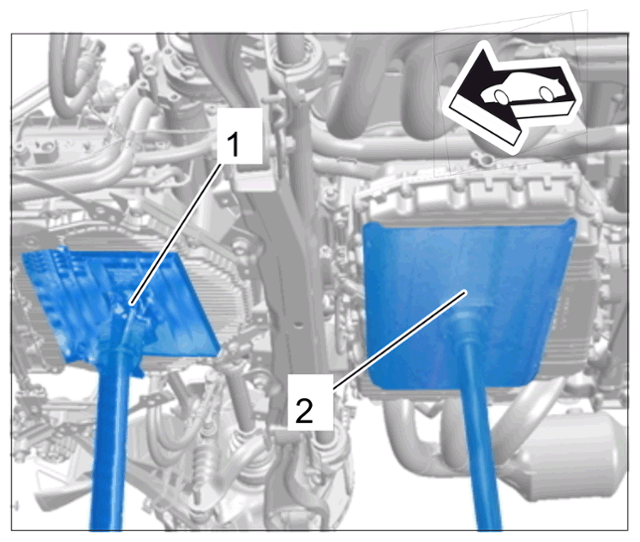

Remove transmission jack -1- from under the transmission and engine.
1. 11.1 Loosen restraining strap.
2. 11.2 Lower and remove the transmission jack -1 and 2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission jack

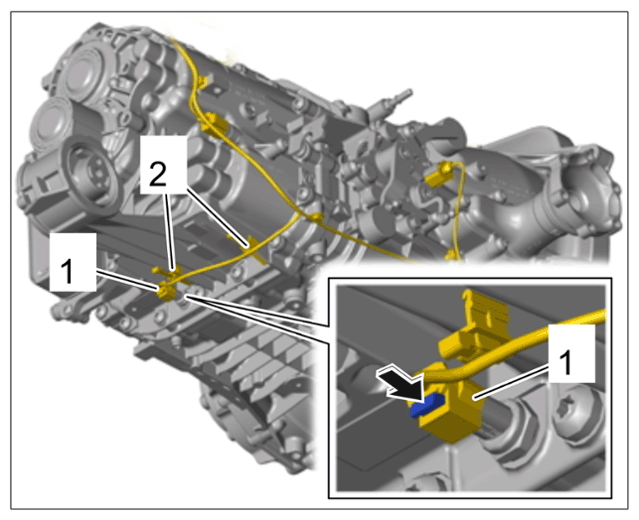

Connect cable plug for temperature sensor to the transmission.

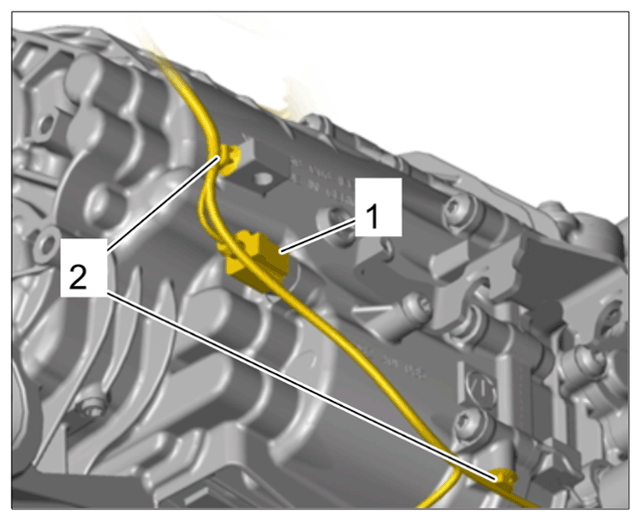

1. 12.1 Connect cable plug for temperature sensor -1- .
2. 12.2 Lock locking element -Arrow- .
3. 12.3 Install sheetmetal holder -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting cable plug for temperature sensor
Connect cable plug for reverse gear switch to the transmission.
1. 13.1 Connect cable plug for reverse gear switch -1- .
2. 13.2 Clip in retaining clip -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing cable plug for reverse gear switch
Connect cable plug for disc valve and neutral gear sensor.

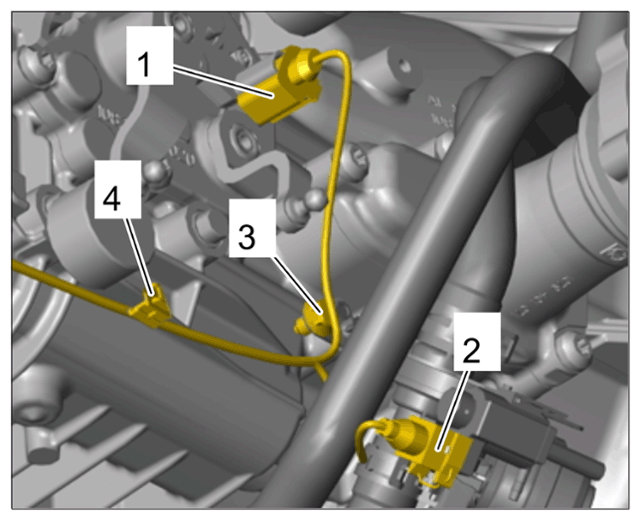

1. 14.1 Connect cable plug for neutral gear sensor -1- .
2. 14.2 Connect cable plug for disc valve -2- .
3. 14.3 Clip in retaining clip -3- .
4. 14.4 Install sheetmetal holder -4- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position of cable plugs and brackets
Secure shift and selector cables -3- on the transmission.

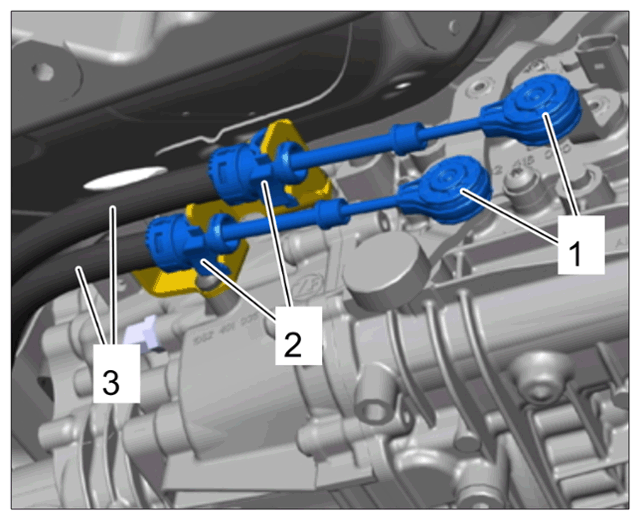

1. 15.1 Install shift and selector cables -3- on the support -2- .
2. 15.2 Install ball joints -1- on exterior shift mechanism.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Shift and selector cable on transmission
Install drive shafts on the transmission side.

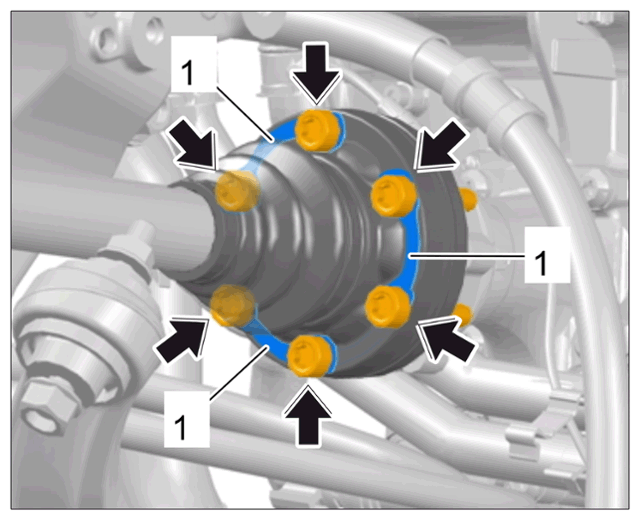

1. 16.1 Fit and tighten new screws -Arrows- between the drive shaft and transmission flange on the plates -1- .
  Counter at the wheel. Get another person to help if necessary!

  > Initial tightening 40 Nm (29.5 ftlb.)

  > Final tightening torque angle + 110°
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive shafts
Additional work for all-wheel drive vehicles:
Install Cardan shaft.

390219 REMOVING AND INSTALLING CARDAN SHAFT
Install diagonal braces.

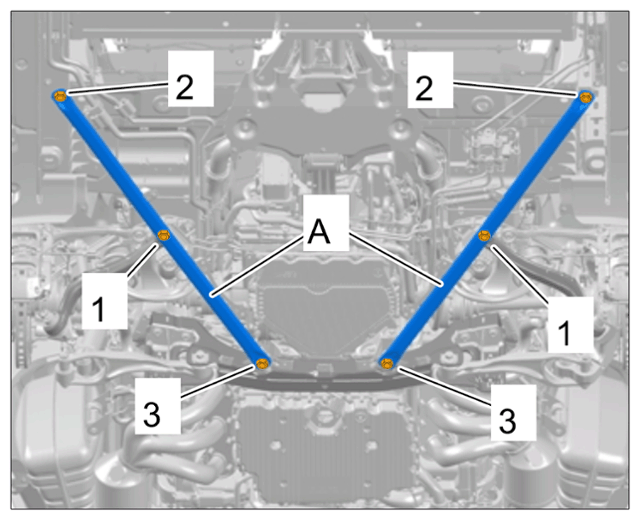

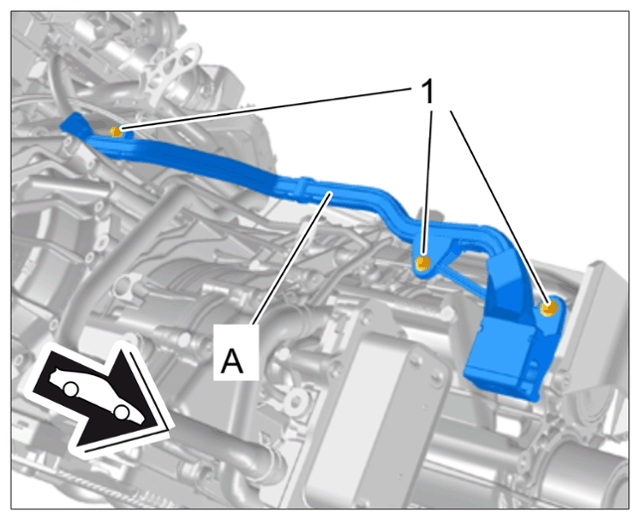

1. 18.1 Position diagonal struts -A- .
2. 18.2 Fit and tighten screws -1- on the mounting for the longitudinal arm.
  > Tightening torque 55 Nm (40.6 ftlb.)
3. 18.3 Fit and tighten new screws -2- on the body using >9768 - electronic torque wrench, 2 - 100 Nm/1.5 - 74 ftlb. .
  > Initial tightening 70 Nm (51.6 ftlb.)

  > Final tightening + 90°

  For the Cabriolet: Diagonal brace to outer body

  > Tightening torque 30 Nm (22.1 ftlb.)
4. 18.4 Fit and tighten new screws -3- on the rear-axle cross member.
  > Initial tightening 30 Nm (22.1 ftlb.)

  > Final tightening + 90°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Diagonal struts
