Adjusting The Shift And Selector Cables

Shift transmission to neutral.

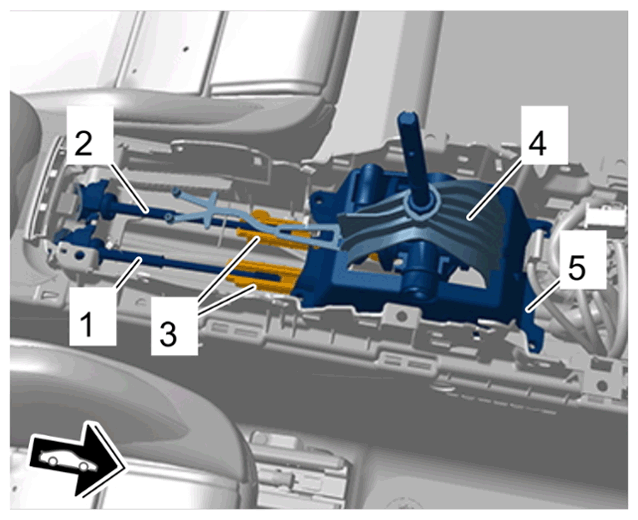

Adjust shift and selector cables -1 and 2- .
1. 2.1 Release bayonet locks -3- .
2. 2.2 >9846 - Locking bridge-4- must be fitted on the gearshift bracket -5- .
3. 2.3 Lock bayonet locks -3- .
4. 2.4 >9846 - Locking bridge-4- must now be unclipped and removed.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Shift and selector cable adjustment
Start the engine and check that all shift positions function correctly.
