Removing Gearshift Bracket

1. Disconnect shift and selector cables -1 and 2-  from the gearshift bracket.
   1. 1.1 Mark position of shift and selector cables -1 and 2-  for re-installation.
   2. 1.2 Release bayonet lock -3-  and unclip shift cable -1-  .
   3. 1.3 Release bayonet lock -4-  and unclip selector cable -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Shift and selector cables on gearshift bracket

2. Remove gearshift bracket -1-  .
   1. 2.1 Unscrew screws for gearshift bracket -2-  .
   2. 2.2 Remove gearshift bracket -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

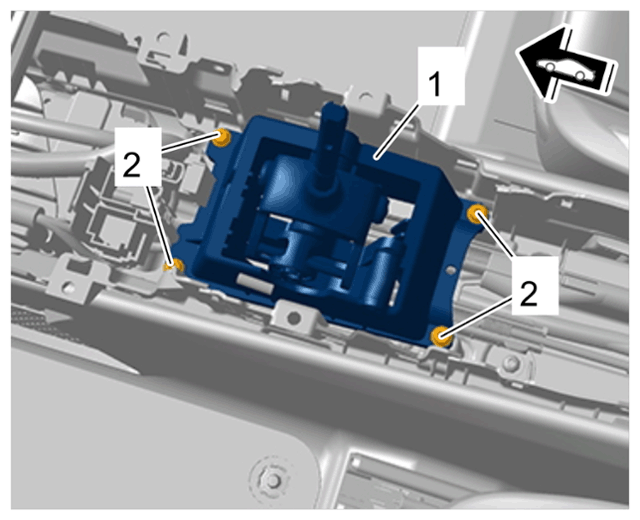

Gearshift bracket
