Removing Shift-Lever Knob

1. Loosen shift-lever boot -1-  from centre console.
   1. 1.1 Unclip retaining frame for shift-lever boot in an upward direction using an assembly wedge -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

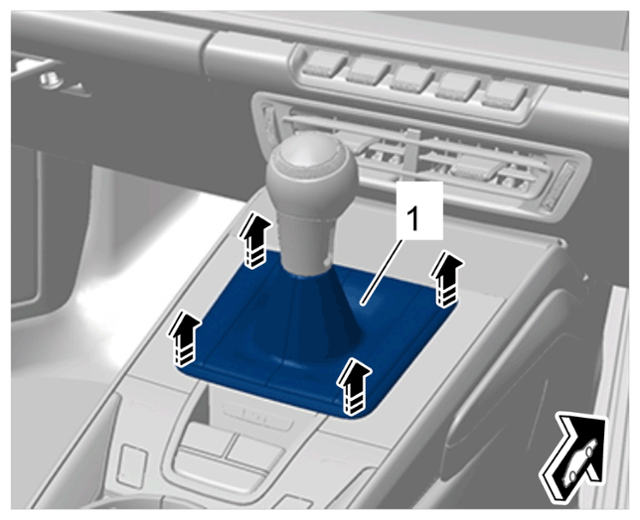

   Retaining frame for shift-lever boot

2. Turn sleeve at the end of the shift-lever knob -1-  45° anti-clockwise -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

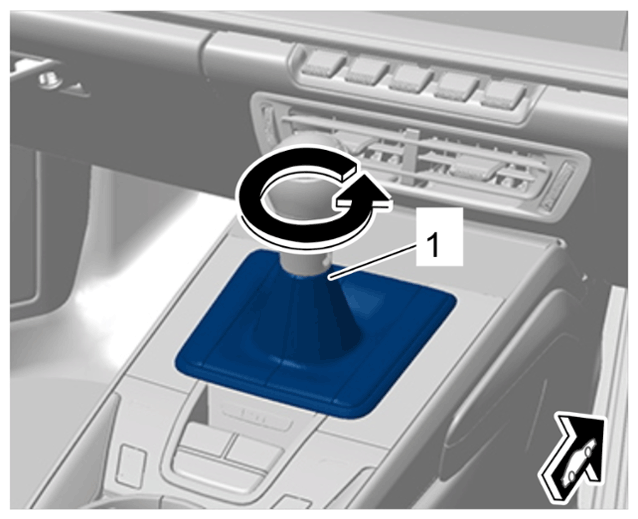

   Sleeve on shift-lever boot

3. Pull shift-lever knob -1-  up and off -arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

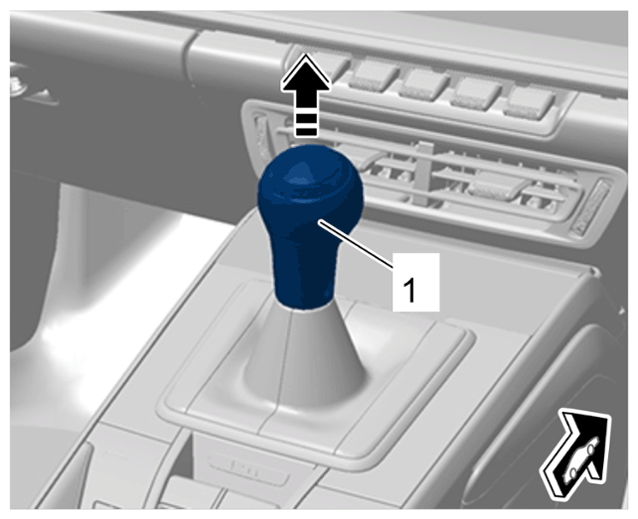

Shift-lever knob
