Checking And Topping Up Transmission Oil

1. Check transmission oil.
   1. 1.1 Position a suitable container under the vehicle to catch escaping transmission oil.
   2. 1.2 Unscrew oil filler screw -1-  .
   3. 1.3 If transmission oil does not  emerge, the transmission oil level is too low. In this case, continue with steps below. If transmission oil emerges, the transmission oil level is correct. In this case, continue with steps below.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

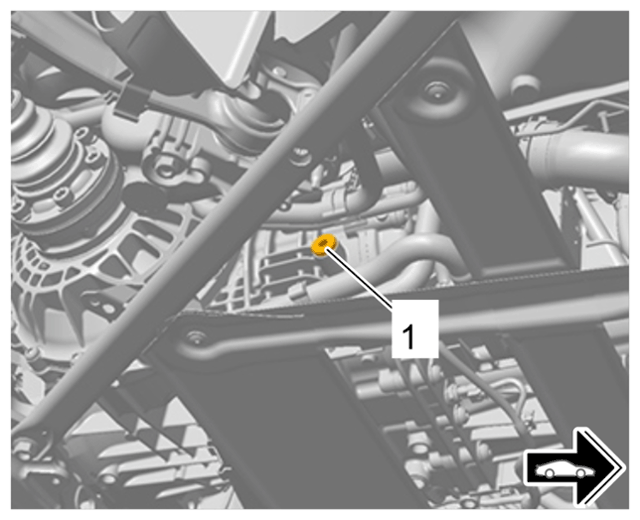

   Oil filler screw on manual transmission

   Information

   Only oils approved by Porsche may be used.

   For more information, see PET (Porsche Spare Parts Catalogue).

2. Top up transmission oil.
   1. 2.1 Fill in transmission oil up to the lower edge of the filler bore using >VAS 6563 - Manual metering pumps, Porsche set  .
3. Fit and tighten oil filler screw -1-  with a new sealing ring.

   > Tightening torque 35 Nm (25.8 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil filler screw on manual transmission
