Removing Clutch

1. 1.1 >VAS 6766 - Counter-hold tool  must be positioned on the ring gear of the flywheel -2-  so that the flywheel is blocked.
2. 1.2 >VAS 6766 - Counter-hold tool  must be secured to the transmission flange using a suitable screw -3-  and M10 nut.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Counterhold on flywheel

Information

• To avoid deforming the clutch pressure plate, always loosen fastening screws in several steps and in diagonally opposite sequence.
• This procedure is not required when replacing the clutch.

1. 2.1 Unscrew screws on clutch pressure plate -2-  .
2. 2.2 Remove clutch pressure plate -1-  together with drive plate.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

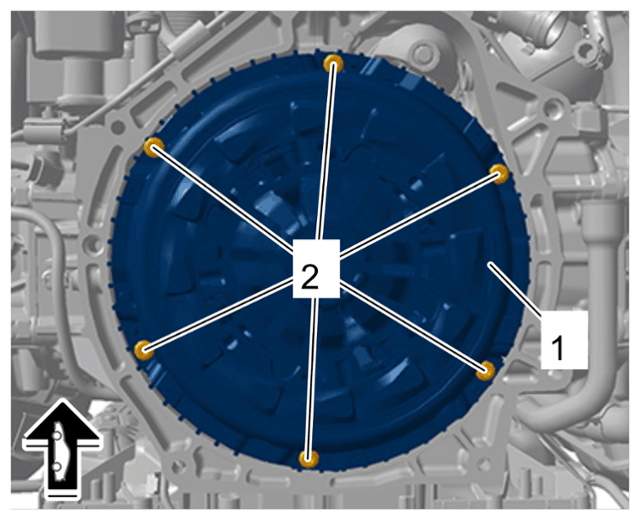

Clutch pressure plate

1. 3.1 Check all clutch components for cracks and damage.
2. 3.2 Check friction surfaces on the clutch pressure plate and flywheel for discoloration caused by overheating.
3. 3.3 Check drive plate pad for wear, cracks and damage.
4. 3.4 Replace damaged or worn components.

1. 4.1 Clean friction surfaces of the flywheel and clutch pressure plate with brake cleaner or solvent naphtha.
