Installing Clutch

Information

Friction surfaces of the flywheel and clutch pressure plate must be completely free of oil and grease before installation.

1. > 9102 - Centering mandrel  together with the drive plate must be inserted into the guide joint. Check the marking transmission side  on the drive plate while doing this.
2. Install clutch pressure plate -1-  .
   1. 2.1 Replace screws on clutch pressure plate -2-  .
   2. 2.2 Position clutch pressure plate -1-  and fit screws for clutch pressure plate -2-  .
   3. 2.3 Screw in screws for clutch pressure plate -2-  evenly in several steps and in diagonally opposite sequence as far as the mounting face.
   4. 2.4 Tighten screws for clutch pressure plate -2-  in diagonally opposite sequence.

      > Initial tightening 10 Nm (7.4 ftlb.)

      > Initial tightening 20 Nm (14.8 ftlb.)

      > Final tightening torque angle 90 Degree +/- 2 Degree

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

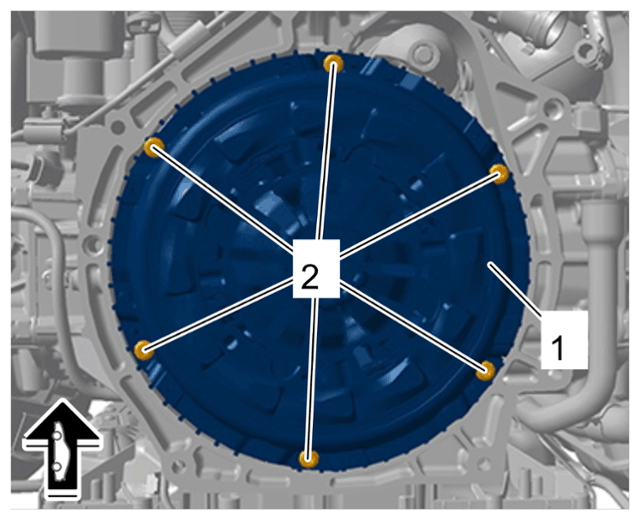

   Clutch pressure plate

3. Remove tools.
   1. 3.1 Loosen nut on >VAS 6766 - Counter-hold tool-1-  and unscrew screw -3-  .
   2. 3.2 >VAS 6766 - Counter-hold tool  must now be removed.
   3. 3.3 >9102 - Centering mandrel  must be removed from the clutch.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

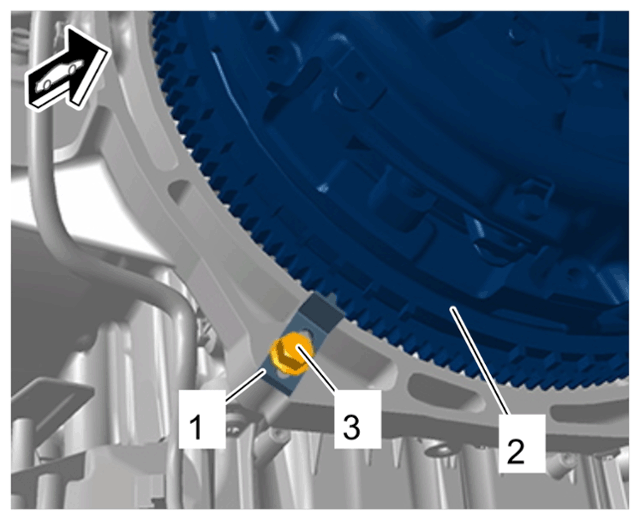

Counterhold on flywheel
